Example_KV2Body.C

This is an example showing how to use KV2Body in order to draw kinematical correlations \(E-\theta\) for different binary reactions, here concerning the inverse kinematics entrance channel \(^{238}\)U+ \(^{12}\)C at 5.9 MeV/ \(A\).

See method KV2Body::GraphELabVsThetaLab().

Compile and run it like this in the kaliveda CLI:

kaliveda [0] .L Example_KV2Body.C+
kaliveda [1] example()

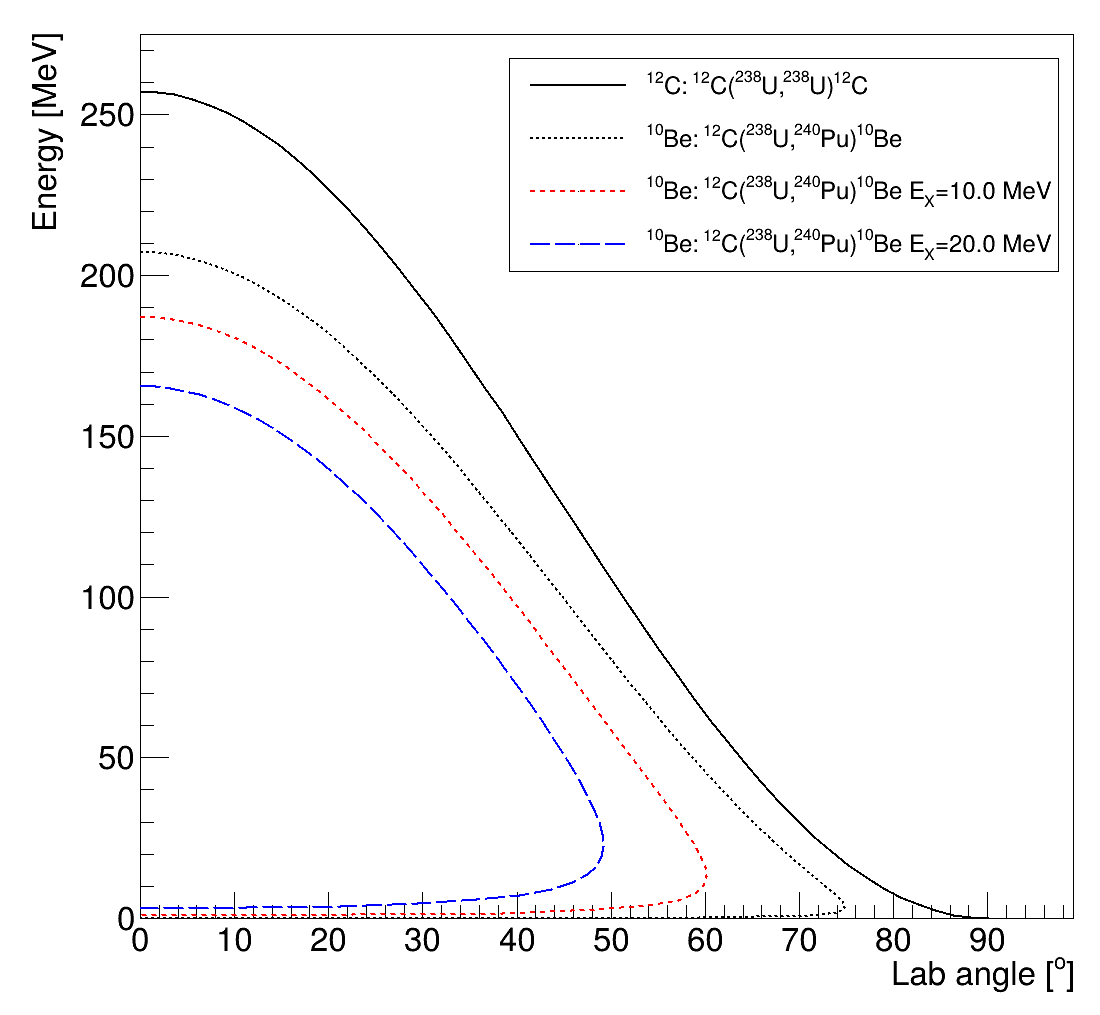

The result should look something like this:

#include "TVirtualPad.h"
#include "TH1F.h"
#include "KV2Body.h"

void example()
{
   KV2Body kk({"238U", 5.9}, "12C");
   kk.CalculateKinematics();
   auto dg = kk.GraphELabVsThetaLab(4);
   dg.LineWidth(2)->Draw("al");
   dg->GetHistogram()->GetXaxis()->SetTitle("Lab angle [^{o}]");
   dg->GetHistogram()->GetYaxis()->SetTitle("Energy [MeV]");
   dg->GetHistogram()->GetYaxis()->SetRangeUser(0, 275);
   kk.SetOutgoing("240Pu");
   kk.CalculateKinematics();
   kk.GraphELabVsThetaLab(4).LineWidth(2).LineStyle(2)->Draw("l");
   kk.SetEDiss(10);
   kk.CalculateKinematics();
   kk.GraphELabVsThetaLab(4).LineWidth(2).LineStyle(7).LineColor(kRed)->Draw("l");
   kk.SetEDiss(20);
   kk.CalculateKinematics();
   kk.GraphELabVsThetaLab(4).LineWidth(2).LineStyle(9).LineColor(kBlue)->Draw("l");
   gPad->BuildLegend();
}
