Detailed Description

Base class for KaliVeda framework.

This is the base class for many classes in the KaliVeda framework. Each KVBase object has:

a name - Get/SetName()
a type - Get/SetType()
a number - Get/SetNumber()
a label - Get/SetLabel()

When objects are accessed through a TObject/TNamed base pointer, it is possible to test whether an object is derived from KVBase, using the bit KVBase::kIsKaliVedaObject:

TObject* ob = (address of some object);

if( ob->TestBit( KVBase::kIsKaliVedaObject ) ){ ... }

KVBase::kIsKaliVedaObject

@ kIsKaliVedaObject

Definition KVBase.h:163

TObject

TObject::TestBit

R__ALWAYS_INLINE Bool_t TestBit(UInt_t f) const

object

This class also provides a number of general utilities, often as static (stand-alone) methods.

KaliVeda build/installation information

The static methods

KVBase::GetKVSourceDir()
KVBase::GetKVBuildDate()
KVBase::GetKVBuildType()
KVBase::GetKVBuildUser()
KVBase::GetKVVersion()

give info on the sources, when and where they were built, and by whom.

Initialisation

The entire KaliVeda framework is initialised by the static method KVBase::InitEnvironment()

Finding/opening files

Static methods for easily locating and/or opening files within the KaliVeda installation tree are given:

KVBase::SearchKVFile(...)

KVBase::SearchAndOpenKVFile(...)

KVBase::SearchKVFile

static Bool_t SearchKVFile(const Char_t *name, TString &fullpath, const Char_t *kvsubdir="")

Definition KVBase.cpp:538

KVBase::SearchAndOpenKVFile

static Bool_t SearchAndOpenKVFile(const Char_t *name, KVSQLite::database &dbfile, const Char_t *kvsubdir="")

Definition KVBase.cpp:649

Note that in the second case, two methods exist: one for reading, the other for writing the (ascii) files. A global function for searching files is also defined:

Bool_t SearchFile(const Char_t* name, TString& fullpath, int ndirs, ...)

Bool_t

bool Bool_t

Char_t

char Char_t

TString

This will search for a file in an arbitrary number of locations, return kTRUE if file is found and put full path to file in 'fullpath':

'name' is a filename (not an absolute pathname) i.e. "toto.dat"
'fullpath' will contain the full path to the file if it is found (if file not found, fullpath="")
'ndirs' is the number of directories to search in

The remaining arguments are the names of 'ndirs' paths to search in,

Finding class source files

Source files for a class can be found using static method

KVBase::FindClassSourceFiles(...)

KVBase::FindClassSourceFiles

static Bool_t FindClassSourceFiles(const Char_t *class_name, KVString &imp_file, KVString &dec_file, const Char_t *dir_name=".")

Definition KVBase.cpp:1102

It will look for appropriately-named files corresponding to the header and implementation file of a class, testing several popular suffixes in each case.

Finding executables

To find an executable in the current user's 'PATH' (or elsewhere), use static method

KVBase::FindExecutable(...)

KVBase::FindExecutable

static Bool_t FindExecutable(TString &exec, const Char_t *path="$(PATH)")

Definition KVBase.cpp:1001

Temporary files

The static methods

KVBase::GetTempFileName(...)

KVBase::OpenTempFile(...)

KVBase::OpenTempFile

static void OpenTempFile(TString &base, std::ofstream &fp)

Definition KVBase.cpp:827

KVBase::GetTempFileName

static void GetTempFileName(TString &base)

Definition KVBase.cpp:848

can generate and handle uniquely-named temporary (ascii) files.

Backing-up files

The static method

KVBase::BackupFileWithDate(...)

KVBase::BackupFileWithDate

static void BackupFileWithDate(const Char_t *path)

Definition KVBase.cpp:753

can be used to create a dated backup of an existing file before it is replaced with a new version.

Handling plugins

As plugins are extensively used in the KaliVeda framework, a few utilities for handling them are defined. They are static methods

KVBase::LoadPlugin(...)

KVBase::GetPluginURI(...)

KVBase::GetPluginURI

static const Char_t * GetPluginURI(const Char_t *base, const Char_t *plugin)

Definition KVBase.cpp:1177

KVBase::LoadPlugin

static TPluginHandler * LoadPlugin(const Char_t *base, const Char_t *uri="0")

Definition KVBase.cpp:793

Examples: base_kvbase.C.

Definition at line 142 of file KVBase.h.

#include <KVBase.h>

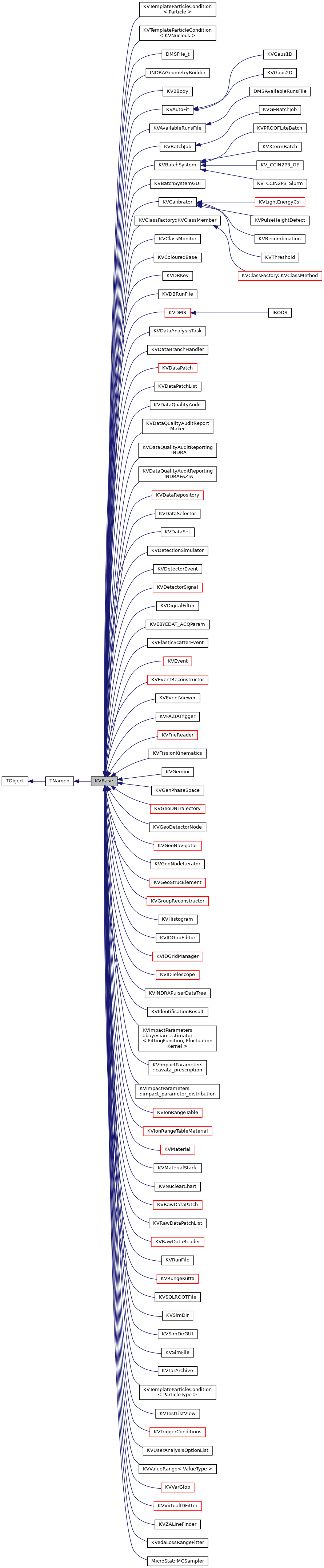

Inherits TNamed.

Inherited by KVTemplateParticleCondition< KVNucleus >, KVTemplateParticleCondition< Particle >, DMSFile_t, INDRAGeometryBuilder, KV2Body, KVAutoFit, KVAvailableRunsFile, KVBatchJob, KVBatchSystem, KVBatchSystemGUI, KVCalibrator, KVClassFactory::KVClassMember, KVClassMonitor, KVColouredBase, KVDBKey, KVDMS, KVDataAnalysisTask, KVDataBranchHandler, KVDataPatch, KVDataPatchList, KVDataQualityAudit, KVDataQualityAuditReportMaker, KVDataQualityAuditReporting_INDRAFAZIA, KVDataRepository, KVDataSelector, KVDataSet, KVDetectionSimulator, KVDetectorEvent, KVDetectorSignal, KVDigitalFilter, KVEBYEDAT_ACQParam, KVElasticScatterEvent, KVEvent, KVEventReconstructor, KVEventViewer, KVFAZIATrigger, KVFileReader, KVFissionKinematics, KVGemini, KVGenPhaseSpace, KVGeoDNTrajectory, KVGeoDetectorNode, KVGeoNavigator, KVGeoNodeIterator, KVGeoStrucElement, KVGroupReconstructor, KVHistogram, KVIDGridEditor, KVIDGridManager, KVIDTelescope, KVINDRAPulserDataTree, KVIdentificationResult, KVImpactParameters::bayesian_estimator< FittingFunction, FluctuationKernel >, KVImpactParameters::cavata_prescription, KVImpactParameters::impact_parameter_distribution, KVIonRangeTable, KVIonRangeTableMaterial, KVMaterial, KVNuclearChart, KVRawDataReader, KVRunFile, KVRungeKutta, KVSQLROOTFile, KVSimDir, KVSimDirGUI, KVSimFile, KVTarArchive, KVTemplateParticleCondition< ParticleType >, KVTestListView, KVTriggerConditions, KVUserAnalysisOptionList, KVValueRange< ValueType >, KVVarGlob, KVVirtualIDFitter, KVZALineFinder, KVedaLossRangeFitter, and MicroStat::MCSampler.

Public Types
enum	EKaliVedaBits { kIsKaliVedaObject = BIT(23) }

Public Types inherited from TObject
enum	EDeprecatedStatusBits

enum	EStatusBits

Public Member Functions
	KVBase ()
	Default constructor.

	KVBase (const Char_t name, const Char_t title="")
	Ctor for object with given name and type.

	KVBase (const KVBase &)
	copy ctor

virtual	~KVBase ()

virtual void	Clear (Option_t *opt="")
	Clear object properties : name, type/title, number, label.

virtual void	Copy (TObject &) const
	Make a copy of this object.

const Char_t *	GetLabel () const

UInt_t	GetNumber () const

UInt_t	GetNumberOfObjects () const

virtual TObject *	GetObject () const

virtual const Char_t *	GetType () const

Bool_t	HasLabel () const

virtual Bool_t	IsCalled (const Char_t *name) const

Bool_t	IsLabelled (const Char_t *l) const

virtual Bool_t	IsType (const Char_t *typ) const

virtual void	List ()

KVBase &	operator= (const KVBase &)
	copy assignment operator

virtual void	Print (Option_t *option="") const

Double_t	ProtectedGetX (const TF1 *func, Double_t val, int &status, Double_t xmin=0.0, Double_t xmax=0.0) const

void	SetLabel (const Char_t *lab)

virtual void	SetNumber (UInt_t num)

virtual void	SetType (const Char_t *str)

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()

void	Clear (Option_t *option="") override

TObject *	Clone (const char *newname="") const override

Int_t	Compare (const TObject *obj) const override

void	Copy (TObject &named) const override

virtual void	FillBuffer (char *&buffer)

const char *	GetName () const override

const char *	GetTitle () const override

ULong_t	Hash () const override

TClass *	IsA () const override

Bool_t	IsSortable () const override

void	ls (Option_t *option="") const override

TNamed &	operator= (const TNamed &rhs)

void	Print (Option_t *option="") const override

virtual void	SetName (const char *name)

virtual void	SetNameTitle (const char name, const char title)

virtual void	SetTitle (const char *title="")

virtual Int_t	Sizeof () const

void	Streamer (TBuffer &) override

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)

virtual	~TObject ()

void	AbstractMethod (const char *method) const

virtual void	AppendPad (Option_t *option="")

virtual void	Browse (TBrowser *b)

ULong_t	CheckedHash ()

virtual const char *	ClassName () const

virtual void	Delete (Option_t *option="")

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)

virtual void	Draw (Option_t *option="")

virtual void	DrawClass () const

virtual TObject *	DrawClone (Option_t *option="") const

virtual void	Dump () const

virtual void	Error (const char method, const char msgfmt,...) const

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)

virtual void	Fatal (const char method, const char msgfmt,...) const

virtual TObject *	FindObject (const char *name) const

virtual TObject *	FindObject (const TObject *obj) const

virtual Option_t *	GetDrawOption () const

virtual const char *	GetIconName () const

virtual char *	GetObjectInfo (Int_t px, Int_t py) const

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const

virtual Bool_t	HandleTimer (TTimer *timer)

Bool_t	HasInconsistentHash () const

virtual void	Info (const char method, const char msgfmt,...) const

virtual Bool_t	InheritsFrom (const char *classname) const

virtual Bool_t	InheritsFrom (const TClass *cl) const

virtual void	Inspect () const

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const

virtual Bool_t	IsEqual (const TObject *obj) const

virtual Bool_t	IsFolder () const

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const

virtual Bool_t	Notify ()

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const

void	operator delete (void *ptr)

void	operator delete (void ptr, void vp)

void	operator delete[] (void *ptr)

void	operator delete[] (void ptr, void vp)

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)

virtual void	Paint (Option_t *option="")

virtual void	Pop ()

virtual Int_t	Read (const char *name)

virtual void	RecursiveRemove (TObject *obj)

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)

virtual void	SetDrawOption (Option_t *option="")

virtual void	SetUniqueID (UInt_t uid)

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()

virtual void	Warning (const char method, const char msgfmt,...) const

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const

Static Public Member Functions
static Bool_t	AreEqual (Double_t x, Double_t y, Long64_t maxdif=1)
	Comparison between two 64-bit floating-point values.

static void	BackupFileWithDate (const Char_t *path)

static void	CombineFiles (const Char_t file1, const Char_t file2, const Char_t *newfilename, Bool_t keep=kTRUE)

static void	Deprecated (const char method, const char advice)

static Bool_t	FindClassSourceFiles (const Char_t class_name, KVString &imp_file, KVString &dec_file, const Char_t dir_name=".")

static Bool_t	FindExecutable (TString &exec, const Char_t *path="$(PATH)")

static const Char_t *	FindFile (const Char_t *search, TString &wfil)

static const Char_t *	GetBINDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetDATABASEFilePath ()

static const Char_t *	GetDATADIRFilePath (const Char_t *namefile="")

static Bool_t	GetDataSetEnv (const Char_t dataset, const Char_t type, Bool_t defval)

static const Char_t *	GetDataSetEnv (const Char_t dataset, const Char_t type, const Char_t *defval)

static Double_t	GetDataSetEnv (const Char_t dataset, const Char_t type, Double_t defval)

static const Char_t *	GetETCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetExampleFilePath (const Char_t library, const Char_t namefile)
	Return full path to example file for given library (="KVMultiDet", "BackTrack", etc.)

static const Char_t *	GetINCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetKVBuildDate ()
	Returns KaliVeda build date.

static const Char_t *	GetKVBuildDir ()
	Returns top-level directory used for build.

static const Char_t *	GetKVBuildTime ()
	Returns KaliVeda build time.

static const Char_t *	GetKVBuildType ()
	Returns KaliVeda build type (cmake build: Release, Debug, RelWithDebInfo, ...)

static const Char_t *	GetKVBuildUser ()
	Returns username of person who performed build.

static const Char_t *	GetKVSourceDir ()
	Returns top-level directory of source tree used for build.

static const Char_t *	GetKVVersion ()
	Returns KaliVeda version string.

static const Char_t *	GetLIBDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetListOfPlugins (const Char_t *base)

static const Char_t *	GetListOfPluginURIs (const Char_t *base)

static const Char_t *	GetPluginURI (const Char_t base, const Char_t plugin)

static void	GetTempFileName (TString &base)

static const Char_t *	GetTEMPLATEDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetWORKDIRFilePath (const Char_t *namefile="")

static const Char_t *	gitBranch ()
	Returns git branch of sources.

static const Char_t *	gitCommit ()
	Returns last git commit of sources.

static void	InitEnvironment ()

static bool	is_gnuinstall ()

static Bool_t	IsThisAPlugin (const TString &uri, TString &base)

static TPluginHandler *	LoadPlugin (const Char_t base, const Char_t uri="0")

static Bool_t	OpenContextMenu (const char method, TObject obj, const char *alt_method_name="")

static void	OpenTempFile (TString &base, std::ofstream &fp)

static void	PrintSplashScreen ()
	Prints welcome message and infos on version etc.

static Bool_t	SearchAndOpenKVFile (const Char_t name, KVSQLite::database &dbfile, const Char_t kvsubdir="")

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ifstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ofstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchKVFile (const Char_t name, TString &fullpath, const Char_t kvsubdir="")

static const Char_t *	WorkingDirectory ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()

static Bool_t	GetObjectStat ()

static void	SetDtorOnly (void *obj)

static void	SetObjectStat (Bool_t stat)

Private Member Functions
void	init ()
	Default initialisation.

Static Private Member Functions
static void	ReadConfigFiles ()

static void	ReadGUIMimeTypes ()

Private Attributes
TString	fLabel
	label for the object

UInt_t	fNumber
	for numbering objects

Static Private Attributes
static Bool_t	fEnvIsInit = kFALSE
	set when environment is initialised

static UInt_t	fNbObj = 0
	Total number of KaliVeda objects (actually counts number of calls to default ctor)

static TString	fWorkingDirectory = "$(HOME)/.kaliveda"
	user working directory for e.g. database files

Additional Inherited Members
Public Attributes inherited from TObject
	kBitMask

	kCanDelete

	kCannotPick

	kHasUUID

	kInconsistent

	kInvalidObject

	kIsOnHeap

	kIsReferenced

	kMustCleanup

	kNoContextMenu

	kNotDeleted

	kObjInCanvas

	kOverwrite

	kSingleKey

	kWriteDelete

	kZombie

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const

void	MakeZombie ()

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Protected Attributes inherited from TObject
	kOnlyPrepStep

Member Enumeration Documentation

◆ EKaliVedaBits

enum KVBase::EKaliVedaBits

Enumerator
kIsKaliVedaObject

Definition at line 162 of file KVBase.h.

Constructor & Destructor Documentation

◆ KVBase() [1/3]

KVBase::KVBase ( )

Default constructor.

Definition at line 317 of file KVBase.cpp.

◆ KVBase() [2/3]

KVBase::KVBase	(	const Char_t *	name,
		const Char_t *	title = `""`
	)

Ctor for object with given name and type.

Definition at line 328 of file KVBase.cpp.

◆ KVBase() [3/3]

KVBase::KVBase ( const KVBase & obj )

copy ctor

Definition at line 339 of file KVBase.cpp.

◆ ~KVBase()

KVBase::~KVBase ( )

virtual

Definition at line 369 of file KVBase.cpp.

Member Function Documentation

◆ AreEqual()

Bool_t KVBase::AreEqual	(	Double_t	A,
		Double_t	B,
		Long64_t	maxdif = `1`
	)

static

Comparison between two 64-bit floating-point values.

Returns kTRUE if the integer representations of the two values are within maxdif of each other. By default maxdif=1, which means that we consider that x==y if the difference between them is no greater than the precision of Double_t variables, i.e. 4.94065645841246544e-324

Based on the function AlmostEqual2sComplement(float, float, int) by Bruce Dawson http://www.cygnus-software.com/papers/comparingfloats/comparingfloats.htm

Definition at line 1442 of file KVBase.cpp.

◆ BackupFileWithDate()

void KVBase::BackupFileWithDate ( const Char_t * path )

static

path gives the full path (can include environment variables, special symbols) to a file which will be renamed with an extension containing the current date and time (in SQL format).

Example:

KVBase::BackupFileWithDate("$(HOME)/toto.txt")

The file toto.txt will be renamed toto.txt.2007-05-02_16:22:37

Definition at line 753 of file KVBase.cpp.

◆ Clear()

void KVBase::Clear ( Option_t * opt = "" )

virtual

Clear object properties : name, type/title, number, label.

Reimplemented from TObject.

Reimplemented in KVFileReader, KVEBYEDAT_ACQParam, KVDetectorSignal, KVGeoDNTrajectory, KVFAZIADetector, KV_CCIN2P3_GE, KV_CCIN2P3_Slurm, KVAutoFit, KVBatchSystem, KVEvent, KVDetectorEvent, KVExpSetUp, KVMultiDetArray, KVDetector, KVGeoStrucElement, KVIdentificationResult, KVIDGridManager, KVMaterial, and KVTarget.

Definition at line 380 of file KVBase.cpp.

◆ CombineFiles()

void KVBase::CombineFiles	(	const Char_t *	file1,
		const Char_t *	file2,
		const Char_t *	newfilename,
		Bool_t	keep = `kTRUE`
	)

static

STATIC method which allows to combine the contents of two ROOT files (file1 and file2) into a new ROOT file (newfilename). All objects from the two files will be written in the new file.

if keep=kFALSE, the two files will be deleted after the operation

Definition at line 1527 of file KVBase.cpp.

◆ Copy()

void KVBase::Copy ( TObject & obj ) const

virtual

Make a copy of this object.

Reimplemented from TObject.

Reimplemented in INDRAGeometryBuilder, KVAutoFit, KVEBYEDAT_ACQParam, KVDataAnalysisTask, KVSimDir, KVSimFile, KVIDGridEditor, KVNuclearChart, KVSimDirGUI, KVZALineFinder, KVIdentificationResult, KVIonRangeTableMaterial, KVRangeYanez, KVRangeYanezMaterial, KVSource, KVValueRange< ValueType >, KVFAZIADetector, KVClassFactory::KVClassMember, KVClassFactory::KVClassMethod, KVEvent, KVEventReconstructor, KVReconNucTrajectory, KVDetector, KVGeoDNTrajectory, KVCaloBase, KVDirectivity, KVFlowTensor, KVFoxH2, KVQuadMoment, KVRiso, KVSubEventMaker, KVVarGlob, KVVarGlob1, KVVarGlobMean, KVVGObjectSum< SumObject >, KVVGObjectSum< KVNucleus >, KVVGObjectSum< TVector3 >, KVZmax, KVTemplateParticleCondition< ParticleType >, KVTemplateParticleCondition< KVNucleus >, KVTemplateParticleCondition< Particle >, KVGenPhaseSpace, KVMaterial, KVTarget, and KVEventClassifier.

Definition at line 394 of file KVBase.cpp.

◆ Deprecated()

void KVBase::Deprecated	(	const char *	where,
		const char *	advice
	)

static

Print a message to indicate when the called method is deprecated and give advice how to do better

Don't call directly: use the macro Deprecate(advice) which will automatically fill in the method name (see KVMacros.h)

Definition at line 1734 of file KVBase.cpp.

◆ FindClassSourceFiles()

Bool_t KVBase::FindClassSourceFiles	(	const Char_t *	class_name,
		KVString &	imp_file,
		KVString &	dec_file,
		const Char_t *	dir_name = `"."`
	)

static

Look for the source files corresponding to class_name i.e. taking class_name as a base, we look for one of

class_name.C,class_name.cpp,class_name.cxx

and one of

class_name.h,class_name.hh,class_name.H

By default we look in the current working directory, unless argument dir_name is given

If found, the names of the two files are written in imp_file and dec_file

Definition at line 1102 of file KVBase.cpp.

◆ FindExecutable()

Bool_t KVBase::FindExecutable	(	TString &	exec,
		const Char_t *	path = `"$(PATH)"`
	)

static

By default, FindExecutable(exec) will look for the executable named by exec in the directories contained in the environment variable PATH. You can override this by giving your own search path as second argument (remember to write environment variables as $(PATH), for cross-platform compatibility).

If exec is not found, and if it does not end with .exe, we look for exec.exe This is for compatibility with Windows/cygwin environments.

If the executable is found, returns kTRUE and exec then holds full path to executable. Returns kFALSE if exec not found in paths.

If exec is an absolute pathname, we return kTRUE if the file exists (we do not use path).

Examples: base_kvbase.C.

Definition at line 1001 of file KVBase.cpp.

◆ FindFile()

const Char_t * KVBase::FindFile	(	const Char_t *	search,
		TString &	wfil
	)

static

Backwards compatible fix for TSystem::FindFile which only exists from ROOT version 5.12/00 onwards. Use this method as a replacement for gSystem->FindFile (same arguments)

Definition at line 1060 of file KVBase.cpp.

◆ GetBINDIRFilePath()

const Char_t * KVBase::GetBINDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 118 of file KVBase.cpp.

◆ GetDATABASEFilePath()

const Char_t * KVBase::GetDATABASEFilePath ( )

static

Definition at line 92 of file KVBase.cpp.

◆ GetDATADIRFilePath()

const Char_t * KVBase::GetDATADIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 74 of file KVBase.cpp.

◆ GetDataSetEnv() [1/3]

Bool_t KVBase::GetDataSetEnv	(	const Char_t *	dataset,
		const Char_t *	type,
		Bool_t	defval
	)

static

Static method to interrogate dataset-specific variables in configuration Will look for gEnv->GetValue "dataset.type" then simply "type" if no dataset-specific value is found. If neither resource is defined, return the "defval" default value

Definition at line 1660 of file KVBase.cpp.

◆ GetDataSetEnv() [2/3]

const Char_t * KVBase::GetDataSetEnv	(	const Char_t *	dataset,
		const Char_t *	type,
		const Char_t *	defval
	)

static

Static method to interrogate dataset-specific variables in configuration Will look for gEnv->GetValue "dataset.type" then simply "type" if no dataset-specific value is found. If neither resource is defined, return the "defval" default value (="" by default)

Definition at line 1619 of file KVBase.cpp.

◆ GetDataSetEnv() [3/3]

Double_t KVBase::GetDataSetEnv	(	const Char_t *	dataset,
		const Char_t *	type,
		Double_t	defval
	)

static

Static method to interrogate dataset-specific variables in configuration Will look for gEnv->GetValue "dataset.type" then simply "type" if no dataset-specific value is found. If neither resource is defined, return the "defval" default value

Definition at line 1639 of file KVBase.cpp.

◆ GetETCDIRFilePath()

const Char_t * KVBase::GetETCDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 65 of file KVBase.cpp.

◆ GetExampleFilePath()

const Char_t * KVBase::GetExampleFilePath	(	const Char_t *	library,
		const Char_t *	namefile
	)

static

Return full path to example file for given library (="KVMultiDet", "BackTrack", etc.)

Definition at line 1577 of file KVBase.cpp.

◆ GetINCDIRFilePath()

const Char_t * KVBase::GetINCDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 109 of file KVBase.cpp.

◆ GetKVBuildDate()

const Char_t * KVBase::GetKVBuildDate ( )

static

Returns KaliVeda build date.

Definition at line 900 of file KVBase.cpp.

◆ GetKVBuildDir()

const Char_t * KVBase::GetKVBuildDir ( )

static

Returns top-level directory used for build.

Definition at line 951 of file KVBase.cpp.

◆ GetKVBuildTime()

const Char_t * KVBase::GetKVBuildTime ( )

static

Returns KaliVeda build time.

Definition at line 912 of file KVBase.cpp.

◆ GetKVBuildType()

const Char_t * KVBase::GetKVBuildType ( )

static

Returns KaliVeda build type (cmake build: Release, Debug, RelWithDebInfo, ...)

Definition at line 925 of file KVBase.cpp.

◆ GetKVBuildUser()

const Char_t * KVBase::GetKVBuildUser ( )

static

Returns username of person who performed build.

Definition at line 887 of file KVBase.cpp.

◆ GetKVSourceDir()

const Char_t * KVBase::GetKVSourceDir ( )

static

Returns top-level directory of source tree used for build.

Definition at line 938 of file KVBase.cpp.

◆ GetKVVersion()

const Char_t * KVBase::GetKVVersion ( )

static

Returns KaliVeda version string.

Definition at line 874 of file KVBase.cpp.

◆ GetLabel()

const Char_t * KVBase::GetLabel ( ) const

inline

Definition at line 199 of file KVBase.h.

◆ GetLIBDIRFilePath()

const Char_t * KVBase::GetLIBDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 100 of file KVBase.cpp.

◆ GetListOfPlugins()

const Char_t * KVBase::GetListOfPlugins ( const Char_t * base )

static

Return whitespace-separated list of all plugin classes defined for the given base class.

E.g. if plugins exist for BaseClass:

Plugin.BaseClass: URI PluginClass PluginLibrary "PluginClassConstructor(arguments)" +Plugin.BaseClass: URI2 PluginClass2 PluginLibrary2 "PluginClass2Constructor(arguments)"

then KVBase::GetListOfPlugins("BaseClass") will return "PluginClass PluginClass2"

Most of the code is copied from TPluginManager::LoadHandlersFromEnv

Definition at line 1260 of file KVBase.cpp.

◆ GetListOfPluginURIs()

const Char_t * KVBase::GetListOfPluginURIs ( const Char_t * base )

static

For a given base class, return a whitespace-separated list of plugin identifiers which are known/defined. E.g. if plugins exist for BaseClass:

Plugin.BaseClass: URI PluginClass PluginLibrary "PluginClassConstructor(arguments)" +Plugin.BaseClass: URI2 PluginClass2 PluginLibrary2 "PluginClass2Constructor(arguments)"

then KVBase::GetListOfPluginURIs("BaseClass") will return "URI URI2"

Definition at line 1327 of file KVBase.cpp.

◆ GetNumber()

UInt_t KVBase::GetNumber ( ) const

inline

Definition at line 220 of file KVBase.h.

◆ GetNumberOfObjects()

UInt_t KVBase::GetNumberOfObjects ( ) const

inline

Definition at line 224 of file KVBase.h.

◆ GetObject()

TObject * KVBase::GetObject ( ) const

virtual

Dummy method (returns NULL). This method may be used in 'container' classes used with KVListView. In order to open the context menu of the 'contained' object, GetLabel() should return the real class of the object, and this method should return its address. Then call KVListView::SetUseObjLabelAsRealClass(kTRUE).

Reimplemented in KVHistogram.

Definition at line 1560 of file KVBase.cpp.

◆ GetPluginURI()

const Char_t * KVBase::GetPluginURI	(	const Char_t *	base,
		const Char_t *	derived
	)

static

Inverse of gPluginMgr->FindHandler(const Char_t* base, const Char_t* uri)

Given a base class base and a derived class derived, we search gEnv to find the URI corresponding to this plugin.

Example: given a plugin such as

Plugin.KVIDTelescope: ^PHOS$ KVIDPhoswich KVIndra "KVIDPhoswich()"

KVIDPhoswich

Identification in Phoswich telescopes of INDRA.

Definition KVIDPhoswich.h:29

then calling KVBase::GetPluginURI("KVIDTelescope", "KVIDPhoswich") will return "PHOS".

Most of the code is copied from TPluginManager::LoadHandlersFromEnv

Definition at line 1177 of file KVBase.cpp.

◆ GetTempFileName()

void KVBase::GetTempFileName ( TString & base )

static

When called with base="toto.dat", the returned value of 'base' is "/full/path/to/temp/dir/toto.dat15930693" i.e. the full path to a file in the system temp directory (gSystem->TempDirectory) appended with the current time as returned by gSystem->Now() in order to make its name unique

Definition at line 848 of file KVBase.cpp.

◆ GetTEMPLATEDIRFilePath()

const Char_t * KVBase::GetTEMPLATEDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 83 of file KVBase.cpp.

◆ GetType()

virtual const Char_t * KVBase::GetType ( ) const

inlinevirtual

Reimplemented in KVDetectorSignal.

Definition at line 177 of file KVBase.h.

◆ GetWORKDIRFilePath()

const Char_t * KVBase::GetWORKDIRFilePath ( const Char_t * namefile = "" )

static

Definition at line 127 of file KVBase.cpp.

◆ gitBranch()

const Char_t * KVBase::gitBranch ( )

static

Returns git branch of sources.

Definition at line 964 of file KVBase.cpp.

◆ gitCommit()

const Char_t * KVBase::gitCommit ( )

static

Returns last git commit of sources.

Definition at line 976 of file KVBase.cpp.

◆ HasLabel()

Bool_t KVBase::HasLabel ( ) const

inline

Definition at line 203 of file KVBase.h.

◆ init()

void KVBase::init ( void )

private

Default initialisation.

Definition at line 138 of file KVBase.cpp.

◆ InitEnvironment()

void KVBase::InitEnvironment ( )

static

STATIC method to Initialise KaliVeda environment Reads config files in $(pkgdatadir)/etc and sets up environment (data repositories, datasets, etc. etc.). Adds directory where kaliveda shared libs are installed to the dynamic path - for finding and loading plugins. Resets the gRandom random number sequence using a clock-based seed (i.e. random sequences do not repeat).

Normally, the first object created which inherits from KVBase will perform this initialisation; if you need to set up the environment before creating a KVBase object, or if you just want to be absolutely sure that the environment has been initialised, you can call this method.

Note for GNU-style installations

If KaliVeda is built with the cmake option -Dgnuinstall=yes then each user will have a working directory which will be used to store any files generated by KaliVeda at runtime.

By default the location of user's working directory is set to

$(HOME)/.kaliveda

but can be changed with variable

KaliVeda.WorkingDirectory: [directory]

in configuration file .kvrootrc. [directory] must be an absolute pathname, but can use shell variables like $(HOME).

Definition at line 181 of file KVBase.cpp.

◆ is_gnuinstall()

static bool KVBase::is_gnuinstall ( )

inlinestatic

return true if built with option -Dgnuinstall=yes i.e. GNU-style installation directories, any generated files stored in user's working directory i.e. not in installation path

Definition at line 277 of file KVBase.h.

◆ IsCalled()

virtual Bool_t KVBase::IsCalled ( const Char_t * name ) const

inlinevirtual

Returns true if object has given name (test value returned by GetName())

Definition at line 190 of file KVBase.h.

◆ IsLabelled()

Bool_t KVBase::IsLabelled ( const Char_t * l ) const

inline

return true if object label is "l"

Definition at line 207 of file KVBase.h.

◆ IsThisAPlugin()

Bool_t KVBase::IsThisAPlugin	(	const TString &	uri,
		TString &	base
	)

static

Returns kTRUE if 'uri' is the name of a defined plugin, in which case 'base' is the name of the base class extended by this plugin.

Most of the code is copied from TPluginManager::LoadHandlersFromEnv

Definition at line 1357 of file KVBase.cpp.

◆ IsType()

virtual Bool_t KVBase::IsType ( const Char_t * typ ) const

inlinevirtual

Returns true if GetType() returns the given type name

Definition at line 185 of file KVBase.h.

◆ List()

virtual void KVBase::List ( )

inlinevirtual

Definition at line 213 of file KVBase.h.

◆ LoadPlugin()

TPluginHandler * KVBase::LoadPlugin	(	const Char_t *	base,
		const Char_t *	uri = `"0"`
	)

static

Load plugin library in order to extend capabilities of base class "base", depending on the given uri (these arguments are used to call TPluginManager::FindHandler). Returns pointer to TPluginHandler. Returns 0 in case of problems. does plugin exist for given name ?

Definition at line 793 of file KVBase.cpp.

◆ OpenContextMenu()

Bool_t KVBase::OpenContextMenu	(	const char *	method,
		TObject *	obj,
		const char *	alt_method_name = `""`
	)

static

Open context menu for given method of object *obj. By default title of menu is 'obj->ClassName()::method' You can give an alternative method name in 'alt_method_name' Returns kFALSE if the given method is not defined for the class of object in question.

WARNING: even if this method returns kTRUE, this is no guarantee that the method has indeed been executed. The user may have pressed the 'Cancel' button...

Definition at line 1495 of file KVBase.cpp.

◆ OpenTempFile()

void KVBase::OpenTempFile	(	TString &	base,
		std::ofstream &	fp
	)

static

Opens a uniquely-named file in system temp directory (gSystem->TempDirectory) Name of file is "basexxxxxxxxxx" where "xxxxxxxxx" is current time as returned by gSystem->Now(). After opening file, 'base' contains full path to file.

Definition at line 827 of file KVBase.cpp.

◆ operator=()

KVBase & KVBase::operator= ( const KVBase & other )

copy assignment operator

Definition at line 355 of file KVBase.cpp.

◆ Print()

void KVBase::Print ( Option_t * option = "" ) const

virtual

Reimplemented from TObject.

Reimplemented in KVFAZIATrigger, INDRAGeometryBuilder, KV_CCIN2P3_GE, KV_CCIN2P3_Slurm, KVBatchSystem, KVClassFactory::KVClassMember, KVClassFactory::KVClassMethod, KVDataPatch, KVDataPatchList, KVFlowTensor, KVVarGlob, KVIDGridManager, KVImpactParameters::bayesian_estimator< FittingFunction, FluctuationKernel >, KVElasticScatterEvent, KVedaLoss, KVIonRangeTable, KVIonRangeTableMaterial, KVRangeYanez, KVAutoFit, KVLightEnergyCsIFull, KVEBYEDAT_ACQParam, KVDataAnalysisTask, KVDataRepository, KVDataSet, KV2Body, KVDataQualityAudit, KVIDTelescope, KVCalibrator, KVCaloBase, KVIdentificationResult, KVTemplateParticleCondition< ParticleType >, KVTemplateParticleCondition< KVNucleus >, KVTemplateParticleCondition< Particle >, KVTarget, KVINDRAReconEvent, KVReconstructedEvent, KVDetector, KVGeoStrucElement, KVMaterial, KVTemplateEvent< Particle >, KVTemplateEvent< KVReconstructedNucleus >, KVTemplateEvent< KVSimNucleus >, KVDetectorEvent, KVSimEvent, and KVTestEvent.

Examples: ClassTraj.cpp.

Definition at line 410 of file KVBase.cpp.

◆ PrintSplashScreen()

void KVBase::PrintSplashScreen ( )

static

Prints welcome message and infos on version etc.

Definition at line 1593 of file KVBase.cpp.

◆ ProtectedGetX()

Double_t KVBase::ProtectedGetX	(	const TF1 *	func,
		Double_t	val,
		int &	status,
		Double_t	xmin = `0.0`,
		Double_t	xmax = `0.0`
	)		const

Since ROOT6, the TF1::GetX() method can no longer be used without precaution.

In ROOT5, if the value val was larger or smaller than the maximum or minimum value of the function (within its defined range) then TF1::GetX() would return X of the maximum or minimum, respectively.

In ROOT6, TF1::GetX() has been reimplemented so that, in the above case, it prints out 3 warning messages and returns a TMath::QuietNaN()! Therefore we provide this function in order to replicate the previous behaviour.

The status = 0 if the value is within the limits of the function. status = +1 if value is above the maximum, or status = -1 if value is below the minimum

When compiled with ROOT5, this method just calls TF1::GetX() (and status = 0 always).

Definition at line 1691 of file KVBase.cpp.

◆ ReadConfigFiles()

void KVBase::ReadConfigFiles ( )

staticprivate

Read all configuration files System config files are read first in the order they appear in file ${ETCDIR}/config.files Then we read any of the following files if they exist: ${HOME}/.kvrootrc ${PWD}/.kvrootrc

Definition at line 272 of file KVBase.cpp.

◆ ReadGUIMimeTypes()

void KVBase::ReadGUIMimeTypes ( )

staticprivate

Add to standard ROOT mime types some new ones defined in .kvrootrc for icons associated with graphs, runs, etc. by lines such as:

KaliVeda.GUI.MimeTypes : KVIDMap
KaliVeda.GUI.MimeTypes.KVIDMap.Icon : rootdb_t.xpm
+KaliVeda.GUI.MimeTypes : KVIDZAGrid
KaliVeda.GUI.MimeTypes.KVIDZAGrid.Icon : draw_t.xpm

etc.

Definition at line 1397 of file KVBase.cpp.

◆ SearchAndOpenKVFile() [1/3]

Bool_t KVBase::SearchAndOpenKVFile	(	const Char_t *	name,
		KVSQLite::database &	dbfile,
		const Char_t *	kvsubdir = `""`
	)

static

Search and open for reading/writing a sqlite database file:

search for file (and open it, if found) in the following order: if 'name' = absolute path the function returns kTRUE if the file exists if name != absolute path:

a. if 'kvsubdir'="" (default) look for file in directory

b. if 'kvsubdir'!="" look for file in /'kvsubdir'
look for file with this name in user's home directory
look for file with this name in working directory if the file is not found, kFALSE is returned.

Definition at line 649 of file KVBase.cpp.

◆ SearchAndOpenKVFile() [2/3]

static Bool_t KVBase::SearchAndOpenKVFile	(	const Char_t *	name,
		std::ifstream &	file,
		const Char_t *	kvsubdir = `""`,
		KVLockfile *	locks = `0`
	)

static

◆ SearchAndOpenKVFile() [3/3]

static Bool_t KVBase::SearchAndOpenKVFile	(	const Char_t *	name,
		std::ofstream &	file,
		const Char_t *	kvsubdir = `""`,
		KVLockfile *	locks = `0`
	)

static

◆ SearchKVFile()

Bool_t KVBase::SearchKVFile	(	const Char_t *	name,
		TString &	fullpath,
		const Char_t *	kvsubdir = `""`
	)

static

search for files in the following order: if 'name' = absolute path the function returns kTRUE if the file exists if name != absolute path:

a. if 'kvsubdir'="" (default) look for file in directory

b. if 'kvsubdir'!="": if 'kvsubdir' is an absolute pathname, look in 'kvsubdir' if 'kvsubdir' is not an absolute pathname, look in '/kvsubdir'
look for file with this name in user's home directory
look for file with this name in working directory in all cases the function returns kTRUE if the file was found. 'fullpath' then contains the absolute path to the file

Definition at line 538 of file KVBase.cpp.

◆ SetLabel()

void KVBase::SetLabel ( const Char_t * lab )

inline

Examples: base_kvbase.C.

Definition at line 195 of file KVBase.h.

◆ SetNumber()

virtual void KVBase::SetNumber ( UInt_t num )

inlinevirtual

Reimplemented in KVGroup.

Definition at line 216 of file KVBase.h.

◆ SetType()

virtual void KVBase::SetType ( const Char_t * str )

inlinevirtual

Reimplemented in KVINDRADetector, and KVDetectorSignal.

Definition at line 173 of file KVBase.h.

◆ WorkingDirectory()

static const Char_t * KVBase::WorkingDirectory ( )

inlinestatic

Definition at line 181 of file KVBase.h.

Member Data Documentation

◆ fEnvIsInit

Bool_t KVBase::fEnvIsInit = kFALSE

staticprivate

set when environment is initialised

Definition at line 151 of file KVBase.h.

◆ fLabel

TString KVBase::fLabel

private

label for the object

Definition at line 148 of file KVBase.h.

◆ fNbObj

UInt_t KVBase::fNbObj = 0

staticprivate

Total number of KaliVeda objects (actually counts number of calls to default ctor)

Definition at line 145 of file KVBase.h.

◆ fNumber

UInt_t KVBase::fNumber

private

for numbering objects

Definition at line 146 of file KVBase.h.

◆ fWorkingDirectory

TString KVBase::fWorkingDirectory = "$(HOME)/.kaliveda"

staticprivate

user working directory for e.g. database files

Definition at line 152 of file KVBase.h.

Detailed Description

KaliVeda build/installation information

Initialisation

Finding/opening files

Finding class source files

Finding executables

Temporary files

Backing-up files

Handling plugins

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ EKaliVedaBits

Constructor & Destructor Documentation

◆ KVBase() [1/3]

◆ KVBase() [2/3]

◆ KVBase() [3/3]

◆ ~KVBase()

Member Function Documentation

◆ AreEqual()

◆ BackupFileWithDate()

◆ Clear()

◆ CombineFiles()

◆ Copy()

◆ Deprecated()

◆ FindClassSourceFiles()

◆ FindExecutable()

◆ FindFile()

◆ GetBINDIRFilePath()

◆ GetDATABASEFilePath()

◆ GetDATADIRFilePath()

◆ GetDataSetEnv() [1/3]

◆ GetDataSetEnv() [2/3]

◆ GetDataSetEnv() [3/3]

◆ GetETCDIRFilePath()

◆ GetExampleFilePath()

◆ GetINCDIRFilePath()

◆ GetKVBuildDate()

◆ GetKVBuildDir()

◆ GetKVBuildTime()

◆ GetKVBuildType()

◆ GetKVBuildUser()

◆ GetKVSourceDir()

◆ GetKVVersion()

◆ GetLabel()

◆ GetLIBDIRFilePath()

◆ GetListOfPlugins()

◆ GetListOfPluginURIs()

◆ GetNumber()

◆ GetNumberOfObjects()

◆ GetObject()

◆ GetPluginURI()

◆ GetTempFileName()

◆ GetTEMPLATEDIRFilePath()

◆ GetType()

◆ GetWORKDIRFilePath()

◆ gitBranch()

◆ gitCommit()

◆ HasLabel()

◆ init()

◆ InitEnvironment()

Note for GNU-style installations

◆ is_gnuinstall()

◆ IsCalled()

◆ IsLabelled()

◆ IsThisAPlugin()

◆ IsType()

◆ List()

◆ LoadPlugin()

◆ OpenContextMenu()

◆ OpenTempFile()

◆ operator=()

◆ Print()

◆ PrintSplashScreen()
