Detailed Description

Output signal from detector obtained by calibration.

Created by KVClassFactory on Thu Jun 13 09:49:14 2019 Author: John Frankland,,,

Calibrated signals are added to detectors when a calibration is available for a given run of a dataset (experiment). A calibration basically defines how a new calibrated signal is generated from an existing input signal using a KVCalibrator or derived class:

KVDetectorSignal _______\ KVCalibrator _______\ KVCalibratedSignal

'input' / / 'output'

KVDetectorSignal

Base class for output signal data produced by a detector.

Definition: KVDetectorSignal.h:46

Supposing a KVCalibrator object has been defined which transforms a signal raw_ADC into a signal Energy,

auto cal = new KVCalibrator("[0]+[1]*x","Energy Calibration");
cal->SetInputSignalType("raw_ADC");
cal->SetOutputSignalType("Energy");
cal->SetParameter(0,0.034)
cal->SetParameter(1,2.465e-03)

adding this calibration to a detector which has a signal raw_ADC will add a new KVCalibratedSignal Energy to the detector:

KVDetector det;
det.AddDetectorSignal("raw_ADC");
det.AddCalibrator(cal);

det.GetListOfDetectorSignals().ls();
OBJ: KVUniqueNameList   KVSeqCollection_156  Optimised list in which objects with the same name can only be placed once : 0
 KVDetectorSignal        raw_ADC        Signal raw_ADC of detector Det_1       [0.000000]
 KVCalibratedSignal      Energy      Signal Energy calculated from signal raw_ADC of detector Det_1       [0.034000]

and now whenever the raw_ADC signal is read/set from data, the Energy signal will be calculated from the calibration:

det.SetDetectorSignalValue("raw_ADC",45630);

det.GetDetectorSignalValue("Energy")
(double) 112.51195

det.GetEnergy()   // special case: KVDetector::GetEnergy() returns value of "Energy" signal
(double) 112.51195

See Detector signals and calibrations in the User's Guide for more details.

See also: KVCalibrator

Definition at line 67 of file KVCalibratedSignal.h.

#include <KVCalibratedSignal.h>

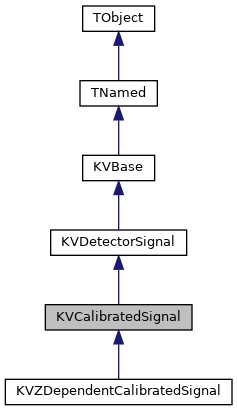

Inheritance diagram for KVCalibratedSignal:

[legend]

Public Member Functions
	KVCalibratedSignal ()

KVCalibrator *	GetCalibrator () const

KVDetectorSignal *	GetInputSignal () const

Double_t	GetInverseValue (Double_t out_val, const TString &in_sig, const KVNameValueList &params="") const override

KVDetectorSignal *	GetParentSignal () override

Double_t	GetValue (const KVNameValueList &params="") const override

Bool_t	InversionFailure () const

Bool_t	IsAvailableFor (const KVNameValueList &params) const override

Bool_t	IsFired () const override

Bool_t	IsRaw () const override

Bool_t	SetRawValueFromCalibrated (Double_t, const KVNameValueList &params="")

Public Member Functions inherited from KVDetectorSignal
	KVDetectorSignal ()

	KVDetectorSignal (const Char_t type, const KVDetector det=nullptr)

void	Clear (Option_t *="") override

const KVDetector *	GetDetector () const

TString	GetFullName () const

virtual Int_t	GetStatus (const TString &) const
	Override in child classes to report on the 'status' of the signal. More...

const Char_t *	GetType () const override

virtual Bool_t	GetValueNeedsExtraParameters () const

virtual Bool_t	IsExpression () const

virtual Bool_t	IsValid () const

void	ls (Option_t *="") const override
	Print compact listing of infos on signal: name/type, associated detector, value. More...

virtual void	Reset ()

void	SetDetector (const KVDetector *d)

void	SetFired (Bool_t yes=true)

void	SetType (const Char_t *typ) override

virtual void	SetValue (Double_t x)

Public Member Functions inherited from KVBase
	KVBase ()
	Default constructor. More...

	KVBase (const Char_t name, const Char_t title="")
	Ctor for object with given name and type. More...

	KVBase (const KVBase &)
	copy ctor More...

void	Copy (TObject &) const override
	Make a copy of this object. More...

void	Error (const char method, const char msgfmt,...) const override

const Char_t *	GetLabel () const

UInt_t	GetNumber () const

virtual TObject *	GetObject () const

Bool_t	HasLabel () const

virtual Bool_t	IsCalled (const Char_t *name) const

Bool_t	IsLabelled (const Char_t *l) const

virtual Bool_t	IsType (const Char_t *typ) const

virtual void	List ()

KVBase &	operator= (const KVBase &)
	copy assignment operator More...

void	Print (Option_t *option="") const override

void	SetLabel (const Char_t *lab)

virtual void	SetNumber (UInt_t num)

void	Warning (const char method, const char msgfmt,...) const override

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()

TObject *	Clone (const char *newname="") const override

Int_t	Compare (const TObject *obj) const override

virtual void	FillBuffer (char *&buffer)

const char *	GetName () const override

const char *	GetTitle () const override

ULong_t	Hash () const override

TClass *	IsA () const override

Bool_t	IsSortable () const override

TNamed &	operator= (const TNamed &rhs)

virtual void	SetName (const char *name)

virtual void	SetNameTitle (const char name, const char title)

virtual void	SetTitle (const char *title="")

virtual Int_t	Sizeof () const

void	Streamer (TBuffer &) override

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)

virtual	~TObject ()

void	AbstractMethod (const char *method) const

virtual void	AppendPad (Option_t *option="")

virtual void	Browse (TBrowser *b)

ULong_t	CheckedHash ()

virtual const char *	ClassName () const

virtual void	Delete (Option_t *option="")

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)

virtual void	Draw (Option_t *option="")

virtual void	DrawClass () const

virtual TObject *	DrawClone (Option_t *option="") const

virtual void	Dump () const

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)

virtual void	Fatal (const char method, const char msgfmt,...) const

virtual TObject *	FindObject (const char *name) const

virtual TObject *	FindObject (const TObject *obj) const

virtual Option_t *	GetDrawOption () const

virtual const char *	GetIconName () const

virtual char *	GetObjectInfo (Int_t px, Int_t py) const

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const

virtual Bool_t	HandleTimer (TTimer *timer)

Bool_t	HasInconsistentHash () const

virtual void	Info (const char method, const char msgfmt,...) const

virtual Bool_t	InheritsFrom (const char *classname) const

virtual Bool_t	InheritsFrom (const TClass *cl) const

virtual void	Inspect () const

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const

virtual Bool_t	IsEqual (const TObject *obj) const

virtual Bool_t	IsFolder () const

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const

virtual Bool_t	Notify ()

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const

void	operator delete (void *ptr)

void	operator delete (void ptr, void vp)

void	operator delete[] (void *ptr)

void	operator delete[] (void ptr, void vp)

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)

virtual void	Paint (Option_t *option="")

virtual void	Pop ()

virtual Int_t	Read (const char *name)

virtual void	RecursiveRemove (TObject *obj)

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)

virtual void	SetDrawOption (Option_t *option="")

virtual void	SetUniqueID (UInt_t uid)

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const

Private Member Functions
	KVCalibratedSignal (KVDetectorSignal *input, const KVString &output)

	KVCalibratedSignal (KVDetectorSignal input, KVCalibrator calib)

Private Attributes
KVCalibrator *	fCalibrator
	calibrator used to transform input signal More...

KVDetectorSignal *	fInputSignal
	signal which is used as input to generate calibrated signal More...

Bool_t	fInversionFail
	set to true when failing to compute an inverted calibrator More...

Friends
class	KVDetector

Additional Inherited Members
Public Types inherited from KVBase
enum	EKaliVedaBits { kIsKaliVedaObject = BIT(23) }

enum class	GetX_status { ok , above_maximum , below_minimum , at_maximum , at_minimum }

Public Types inherited from TObject
enum	EDeprecatedStatusBits

enum	EStatusBits

Static Public Member Functions inherited from KVBase
static Bool_t	AreEqual (Double_t x, Double_t y, Long64_t maxdif=1)
	Comparison between two 64-bit floating-point values. More...

static void	BackupFileWithDate (const Char_t *path)

static void	CombineFiles (const Char_t file1, const Char_t file2, const Char_t *newfilename, Bool_t keep=kTRUE)

static void	Deprecated (const char method, const char advice)

static Bool_t	FindClassSourceFiles (const KVString &class_name, KVString &imp_file, KVString &dec_file, const KVString &dir_name=".")

static Bool_t	FindExecutable (TString &exec, const Char_t *path="$(PATH)")

static const Char_t *	FindFile (const Char_t *search, TString &wfil)

static const Char_t *	GetBINDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetDATABASEFilePath ()

static const Char_t *	GetDATADIRFilePath (const Char_t *namefile="")

template<typename ValType >
static ValType	GetDataSetEnv (const KVString &dataset, const KVString &type, const ValType &defval={})

static const Char_t *	GetETCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetExampleFilePath (const Char_t library, const Char_t namefile)
	Return full path to example file for given library (="KVMultiDet", "BackTrack", etc.) More...

static const Char_t *	GetINCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetKVBuildDate ()
	Returns KaliVeda build date. More...

static const Char_t *	GetKVBuildDir ()
	Returns top-level directory used for build. More...

static const Char_t *	GetKVBuildTime ()
	Returns KaliVeda build time. More...

static const Char_t *	GetKVBuildType ()
	Returns KaliVeda build type (cmake build: Release, Debug, RelWithDebInfo, ...) More...

static const Char_t *	GetKVBuildUser ()
	Returns username of person who performed build. More...

static int	GetKVMajorVersion ()

static int	GetKVMinorVersion ()

static int	GetKVPatchVersion ()

static const Char_t *	GetKVSourceDir ()
	Returns top-level directory of source tree used for build. More...

static const Char_t *	GetKVVersion ()
	Returns KaliVeda version string. More...

static const Char_t *	GetLIBDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetListOfPlugins (const Char_t *base)

static const Char_t *	GetListOfPluginURIs (const Char_t *base)

static const Char_t *	GetPluginURI (const Char_t base, const Char_t plugin)

static void	GetTempFileName (TString &base)

static const Char_t *	GetTEMPLATEDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetWORKDIRFilePath (const Char_t *namefile="")

static const Char_t *	gitBranch ()
	Returns git branch of sources. More...

static const Char_t *	gitCommit ()
	Returns last git commit of sources. More...

static void	InitEnvironment ()

static bool	is_gnuinstall ()

static Bool_t	IsEnvInit ()

static Bool_t	IsThisAPlugin (const TString &uri, TString &base)

static TPluginHandler *	LoadPlugin (const Char_t base, const Char_t uri="0")

static Bool_t	OpenContextMenu (const char method, TObject obj, const char *alt_method_name="")

static void	OpenTempFile (TString &base, std::ofstream &fp)

static void	PrintSplashScreen ()
	Prints welcome message and infos on version etc. More...

static Double_t	ProtectedGetX (const TF1 &func, Double_t val, GetX_status &status, std::optional< Double_t > xmin={}, std::optional< Double_t > xmax={})

static Double_t	ProtectedGetX (const TF1 *func, Double_t val, GetX_status &status, std::optional< Double_t > xmin={}, std::optional< Double_t > xmax={})

static Bool_t	SearchAndOpenKVFile (const Char_t name, KVSQLite::database &dbfile, const Char_t kvsubdir="")

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ifstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ofstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchKVFile (const Char_t name, TString &fullpath, const Char_t kvsubdir="")

static const Char_t *	WorkingDirectory ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()

static Bool_t	GetObjectStat ()

static void	SetDtorOnly (void *obj)

static void	SetObjectStat (Bool_t stat)

Public Attributes inherited from TObject
	kBitMask

	kCanDelete

	kCannotPick

	kHasUUID

	kInconsistent

	kInvalidObject

	kIsOnHeap

	kIsReferenced

	kMustCleanup

	kNoContextMenu

	kNotDeleted

	kObjInCanvas

	kOverwrite

	kSingleKey

	kWriteDelete

	kZombie

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const

void	MakeZombie ()

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Protected Attributes inherited from TObject
	kOnlyPrepStep

Constructor & Destructor Documentation

◆ KVCalibratedSignal() [1/3]

KVCalibratedSignal::KVCalibratedSignal	(	KVDetectorSignal *	input,
		const KVString &	output
	)

inlineprivate

Constructor used by KVZDependentCalibratedSignal

Definition at line 76 of file KVCalibratedSignal.h.

◆ KVCalibratedSignal() [2/3]

KVCalibratedSignal::KVCalibratedSignal	(	KVDetectorSignal *	input,
		KVCalibrator *	calib
	)

inlineprivate

Constructor used by KVDetector::AddCalibrator()

Definition at line 82 of file KVCalibratedSignal.h.

◆ KVCalibratedSignal() [3/3]

KVCalibratedSignal::KVCalibratedSignal ( )

inline

Definition at line 89 of file KVCalibratedSignal.h.

Member Function Documentation

◆ GetCalibrator()

KVCalibrator* KVCalibratedSignal::GetCalibrator ( ) const

inline

Definition at line 101 of file KVCalibratedSignal.h.

◆ GetInputSignal()

KVDetectorSignal* KVCalibratedSignal::GetInputSignal ( ) const

inline

Definition at line 96 of file KVCalibratedSignal.h.

◆ GetInverseValue()

Double_t KVCalibratedSignal::GetInverseValue	(	Double_t	out_val,
		const TString &	in_sig,
		const KVNameValueList &	params = `""`
	)		const

overridevirtual

Returns the value of the input signal "in_sig" for a given value of this signal, using the inverse calibration function.

Note that "in_sig" may not be the name/type of the direct input signal for this signal, in which case the chain of signals/calibrators is followed back to the required signal.

In case a problem occurs with the calculation, InversionFailure() will return kTRUE.

Any additional parameters required by the calibration can be passed as a comma-separated list of 'parameter=value' pairs

Reimplemented from KVDetectorSignal.

Reimplemented in KVZDependentCalibratedSignal.

Definition at line 58 of file KVCalibratedSignal.cpp.

◆ GetParentSignal()

KVDetectorSignal* KVCalibratedSignal::GetParentSignal ( )

inlineoverridevirtual

Returns: pointer to the 'most raw' input signal for this calibrated value

Reimplemented from KVDetectorSignal.

Definition at line 131 of file KVCalibratedSignal.h.

◆ GetValue()

Double_t KVCalibratedSignal::GetValue ( const KVNameValueList & params = "" ) const

overridevirtual

Returns the value of the calibrated signal using the current value of the input signal* and the current parameters of the calibration

Any additional parameters required by the calibration can be passed as a comma-separated list of parameter=value pairs

In case a problem occurs with the calculation [in case of an inverted calibration function], InversionFailure() will return kTRUE.

*if a parameter INPUT is given, its value is used instead of the input signal.

Reimplemented from KVDetectorSignal.

Reimplemented in KVZDependentCalibratedSignal.

Definition at line 21 of file KVCalibratedSignal.cpp.

◆ InversionFailure()

Bool_t KVCalibratedSignal::InversionFailure ( ) const

inline

Definition at line 115 of file KVCalibratedSignal.h.

◆ IsAvailableFor()

Bool_t KVCalibratedSignal::IsAvailableFor ( const KVNameValueList & params ) const

inlineoverridevirtual

Determine if a calibration is effectively available based on the extra parameters in the KVNameValueList.

All of the parent signals which are used by this signal must also be available - therefore we check recursively

Reimplemented from KVDetectorSignal.

Reimplemented in KVZDependentCalibratedSignal.

Definition at line 119 of file KVCalibratedSignal.h.

◆ IsFired()

Bool_t KVCalibratedSignal::IsFired ( ) const

inlineoverridevirtual

Returns: kTRUE if input signal IsFired() = kTRUE

Reimplemented from KVDetectorSignal.

Definition at line 110 of file KVCalibratedSignal.h.

◆ IsRaw()

Bool_t KVCalibratedSignal::IsRaw ( ) const

inlineoverridevirtual

Returns: kFALSE: this is not raw data, it is produced by a calibration procedure

Reimplemented from KVDetectorSignal.

Definition at line 105 of file KVCalibratedSignal.h.

◆ SetRawValueFromCalibrated()

Bool_t KVCalibratedSignal::SetRawValueFromCalibrated	(	Double_t	x,
		const KVNameValueList &	params = `""`
	)

This method will set the value of the raw input parameter for this signal according to new output value x, if possible (it is not possible if any of the signals used as input are expressions).

Returns: true if all went well, false in case of inversion failure

Definition at line 83 of file KVCalibratedSignal.cpp.

Friends And Related Function Documentation

◆ KVDetector

friend class KVDetector

friend

Definition at line 69 of file KVCalibratedSignal.h.

Member Data Documentation

◆ fCalibrator

KVCalibrator* KVCalibratedSignal::fCalibrator

private

calibrator used to transform input signal

Definition at line 72 of file KVCalibratedSignal.h.

◆ fInputSignal

KVDetectorSignal* KVCalibratedSignal::fInputSignal

private

signal which is used as input to generate calibrated signal

Definition at line 71 of file KVCalibratedSignal.h.

◆ fInversionFail

Bool_t KVCalibratedSignal::fInversionFail

mutableprivate

set to true when failing to compute an inverted calibrator

Definition at line 73 of file KVCalibratedSignal.h.

Detailed Description

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Constructor & Destructor Documentation

◆ KVCalibratedSignal() [1/3]

◆ KVCalibratedSignal() [2/3]

◆ KVCalibratedSignal() [3/3]

Member Function Documentation

◆ GetCalibrator()

◆ GetInputSignal()

◆ GetInverseValue()

◆ GetParentSignal()

◆ GetValue()

◆ InversionFailure()

◆ IsAvailableFor()

◆ IsFired()

◆ IsRaw()

◆ SetRawValueFromCalibrated()

Friends And Related Function Documentation

◆ KVDetector

Member Data Documentation

◆ fCalibrator

◆ fInputSignal

◆ fInversionFail
