Detailed Description

Base class for FAZIA detectors.

Created by KVClassFactory on Fri Jan 23 18:44:27 2015 Author: ,,,

Detector names

Detector names are assumed to be defined as label-xxx where xxx is computed as follows (see KVFAZIADetector::GetIndex) :

100*block number+10*quartet number+telescope number

and label can be SI1, SI2 or CSI

For example SI1-123 is the Silicon Si1 of the block 1, the quartet 2 and the telescope 3

Definition at line 29 of file KVFAZIADetector.h.

#include <KVFAZIADetector.h>

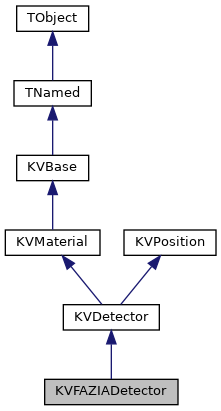

Inheritance diagram for KVFAZIADetector:

[legend]

Public Types
enum	{ kSI1 , kSI2 , kCSI , kOTHER }

Public Types inherited from KVMaterial
enum	SolType { kEmax , kEmin }

Public Types inherited from KVBase
enum	EKaliVedaBits { kIsKaliVedaObject = BIT(23) }

enum class	GetX_status { ok , above_maximum , below_minimum , at_maximum , at_minimum }

Public Types inherited from TObject
enum	EDeprecatedStatusBits

enum	EStatusBits

Public Member Functions
	KVFAZIADetector ()
	Default constructor. More...

	KVFAZIADetector (const Char_t *type, const Float_t thick=0.0)
	Create detector of given material type and thickness (in centimetres) More...

virtual	~KVFAZIADetector ()
	Destructor. More...

void	Clear (Option_t *opt="") override
	If opt="N" we do not reset any raw data, signals, etc. More...

void	ComputePSA ()
	Perform Pulse Shape Analysis on all signals. More...

void	Copy (TObject &obj) const override

Bool_t	Fired (Option_t *opt="any") const override

Int_t	GetBlockNumber () const

Int_t	GetDetTag () const

Int_t	GetGTTag () const

Int_t	GetIdentifier () const

Int_t	GetIndex () const override

const KVSeqCollection *	GetListOfSignals () const

Int_t	GetNumberOfSignals () const

Int_t	GetQuartetNumber () const

Double_t	GetSetupParameter (const Char_t *parname)

KVSignal *	GetSignal (const Char_t *name) const

KVSignal *	GetSignal (Int_t idx) const

KVSignal *	GetSignalByType (const Char_t *type) const

Int_t	GetTelescopeNumber () const

Bool_t	HasSignal () const
	Returns kTRUE if detector has at least 1 associated signal. More...

Bool_t	IsRutherford () const

void	SetDetTag (Int_t t)

void	SetGTTag (Int_t t)

void	SetName (const char *name) override

void	SetSignal (TGraph signal, const Char_t signal_name)

Public Member Functions inherited from KVDetector
	KVDetector ()
	default ctor More...

	KVDetector (const Char_t *gas, const Double_t thick, const Double_t pressure, const Double_t temperature=19.0)

	KVDetector (const Char_t *type, const Float_t thick=0.0)
	Create a new detector of a given material and thickness in centimetres (default value = 0.0) More...

	KVDetector (const KVDetector &)
	copy ctor More...

virtual	~ KVDetector ()

void	AddAbsorber (KVMaterial *)

Bool_t	AddCalibrator (KVCalibrator *cal, const KVNameValueList &opts="")

KVDetectorSignal *	AddDetectorSignal (const KVString &type)

Bool_t	AddDetectorSignalExpression (const KVString &type, const KVString &_expr)

KVDetectorSignalTrace *	AddDetectorSignalTrace ()

virtual void	AddEnergyLossInSubDetector (int, double)

void	AddHit (KVNucleus *part)

void	AddParentStructure (KVGeoStrucElement *elem)

Bool_t	BelongsToIdentifiedParticle () const

Bool_t	BelongsToUnidentifiedParticle () const

void	ClearHits ()

void	DetectParticle (KVNucleus , TVector3 norm=0) override

virtual KVDrawable< TGraph >	DrawPunchThroughEnergyVsZ (Int_t massform=KVNucleus::kBetaMass)

virtual KVDrawable< TGraph >	DrawPunchThroughEsurAVsZ (Int_t massform=KVNucleus::kBetaMass)

virtual Int_t	FindZmin (Double_t ELOSS=-1., Char_t mass_formula=-1)

KVMaterial *	GetAbsorber (const Char_t *name) const

KVMaterial *	GetAbsorber (Int_t i) const
	Returns pointer to the i-th absorber in the detector (i=0 first absorber, i=1 second, etc.) More...

KVMaterial *	GetActiveLayer () const override

TGeoHMatrix *	GetActiveLayerMatrix () const

TGeoBBox *	GetActiveLayerShape () const

TVector3	GetActiveLayerSurfaceCentre () const

TVector3	GetActiveLayerVolumeCentre () const

virtual Double_t	GetCalibratedEnergy () const

KVCalibrator *	GetCalibrator (const Char_t name, const Char_t type) const

KVCalibrator *	GetCalibrator (const Char_t *type) const

const TVector3	GetCentreOfEntranceWindow () const

virtual Double_t	GetCorrectedEnergy (KVNucleus *, Double_t e=-1., Bool_t transmission=kTRUE)

Double_t	GetCosTheta () const override

Double_t	GetDeltaE (Int_t Z, Int_t A, Double_t Einc, Double_t=0.) override

Double_t	GetDeltaEFromERes (Int_t Z, Int_t A, Double_t Eres) override

virtual KVDetectorSignal *	GetDetectorSignal (const KVString &type) const

Double_t	GetDetectorSignalValue (const KVString &type, const KVNameValueList &params="") const

TVector3	GetDirection () override

Double_t	GetDistance () const override

Double_t	GetEIncOfMaxDeltaE (Int_t Z, Int_t A) override

virtual TF1 *	GetELossFunction (Int_t Z, Int_t A)

Double_t	GetELostByParticle (KVNucleus , TVector3 norm=0) override

virtual Double_t	GetEnergy () const

Double_t	GetEnergyLoss () const override

const KVPosition &	GetEntranceWindow () const

virtual Double_t	GetEntranceWindowSurfaceArea ()
	Return surface area of first layer of detector in cm2. More...

Double_t	GetERes (Int_t Z, Int_t A, Double_t Einc, Double_t=0.) override

virtual Double_t	GetEResAfterDetector () const

virtual TF1 *	GetEResFunction (Int_t Z, Int_t A)

KVGroup *	GetGroup () const

UInt_t	GetGroupNumber ()

Double_t	GetIncidentEnergy (Int_t Z, Int_t A, Double_t delta_e=-1.0, enum SolType type=kEmax) override

Double_t	GetIncidentEnergyFromERes (Int_t Z, Int_t A, Double_t Eres) override

Double_t	GetInverseDetectorSignalValue (const KVString &output, Double_t value, const KVString &input, const KVNameValueList &params="") const

Double_t	GetLinearRange (Int_t Z, Int_t A, Double_t Einc) override

const KVList *	GetListOfAbsorbers () const

KVList *	GetListOfCalibrators () const

const KVSeqCollection &	GetListOfDetectorSignals () const

const KVSeqCollection &	GetListOfDetectorSignalsForRawTree () const

const Char_t *	GetMaterialName () const

Double_t	GetMaxDeltaE (Int_t Z, Int_t A) override

const Char_t *	GetNameOfArray () const

Int_t	GetNHits () const
	Return the number of particles hitting this detector in an event. More...

KVGeoDetectorNode *	GetNode ()

Int_t	GetNumberOfAbsorberLayers () const

KVGeoStrucElement *	GetParentStructure (const Char_t type, const Char_t name="") const

Double_t	GetParticleEIncFromERes (KVNucleus , TVector3 norm=0) override

Double_t	GetPhi () const override

Double_t	GetPunchThroughEnergy (Int_t Z, Int_t A) override

void	GetRandomAngles (Double_t &th, Double_t &ph, Option_t *t="isotropic") override

TVector3	GetRandomDirection (Option_t *t="isotropic") override

Double_t	GetRange (Int_t Z, Int_t A, Double_t Einc) override

virtual TF1 *	GetRangeFunction (Int_t Z, Int_t A)

Double_t	GetSinTheta () const override

virtual Double_t	GetSmallestEmaxValid (Int_t Z, Int_t A) const

Double_t	GetSolidAngle () const override

Double_t	GetTheta () const override

virtual Double_t	GetTotalDeltaE (Int_t Z, Int_t A, Double_t Einc)

Double_t	GetTotalThicknessInCM () const

Bool_t	HasDetectorSignal (const KVString &type) const

Bool_t	HasSameStructureAs (const KVDetector *) const

void	IncrementIdentifiedParticles (Int_t n=1)

void	IncrementUnidentifiedParticles (Int_t n=1)

void	init ()
	default initialisations More...

Bool_t	IsAnalysed ()

Bool_t	IsCalibrated () const

Bool_t	IsCalibrated (const KVNameValueList &params) const

virtual Bool_t	IsDetecting () const

Bool_t	IsGasDetector () const

Bool_t	IsMultiLayer () const

virtual Bool_t	IsOK () const

virtual Bool_t	IsPresent () const

virtual Bool_t	IsSegmented () const

virtual Bool_t	IsSimMode () const

Bool_t	IsSingleLayer () const

void	Print (Option_t *option="") const override

virtual void	ReadDefinitionFromFile (const Char_t *)

void	RemoveAllAbsorbers ()

virtual void	RemoveCalibrators ()

auto	RemoveHit (KVNucleus *part)

void	RemoveParentStructure (KVGeoStrucElement *elem)

Bool_t	ReplaceCalibrator (const Char_t type, KVCalibrator cal, const KVNameValueList &opts="")

virtual void	Reset (Option_t *opt="")

void	SetActiveLayer (Int_t i)

void	SetActiveLayer (KVMaterial *actif)

void	SetActiveLayerMatrix (const TGeoHMatrix *)
	Set ROOT geometry global matrix transformation to coordinate frame of active layer volume. More...

void	SetActiveLayerShape (TGeoBBox *)
	Set ROOT geometry shape of active layer volume. More...

void	SetAnalysed (Bool_t b=kTRUE)

void	SetDetecting (Bool_t yes=kTRUE)

void	SetDetectorSignalValue (const KVString &type, Double_t val) const

virtual void	SetEnergy (Double_t e) const

void	SetEnergyLoss (Double_t e) const override

void	SetEntranceWindowMatrix (const TGeoHMatrix *)
	Set ROOT geometry global matrix transformation to coordinate frame of entrance window. More...

void	SetEntranceWindowShape (TGeoBBox *)
	Set ROOT geometry shape of entrance window. More...

virtual void	SetEResAfterDetector (Double_t e)

void	SetMaterial (const Char_t *type) override

void	SetNameOfArray (const TString &n)

void	SetPresent (Bool_t yes=kTRUE)

void	SetPressure (Double_t P) override

virtual void	SetSimMode (Bool_t on=kTRUE)

void	SetTemperature (Double_t T) override

void	SetThickness (Double_t thick) override

Public Member Functions inherited from KVMaterial
	KVMaterial ()
	default ctor More...

	KVMaterial (const Char_t *gas, const Double_t thick, const Double_t pressure, const Double_t temperature=19.0)

	KVMaterial (const Char_t *type, const Double_t thick=0.0)
	Create material with given type and linear thickness in cm. More...

	KVMaterial (const KVMaterial &)
	Copy ctor. More...

	KVMaterial (Double_t area_density, const Char_t *type)
	Create material with given area density in $g/cm^{2}$ and given type. More...

virtual	~ KVMaterial ()

virtual TGeoVolume *	GetAbsGeoVolume () const

Double_t	GetAreaDensity () const

Double_t	GetDensity () const

Double_t	GetEffectiveAreaDensity (const TVector3 &norm, const TVector3 &direction)

Double_t	GetEffectiveThickness (const TVector3 &norm, const TVector3 &direction)

Double_t	GetEmaxValid (Int_t Z, Int_t A)

virtual Double_t	GetEResFromDeltaE (Int_t Z, Int_t A, Double_t dE=-1.0, enum SolType type=kEmax)

virtual TGeoMedium *	GetGeoMedium (const Char_t *="")

virtual KVDrawable< TGraph >	GetGraphOfDeltaEVsE (const KVNucleus &nuc, Int_t npts, Double_t Emin, Double_t Emax)

Double_t	GetMass () const

virtual Double_t	GetPressure () const

virtual Double_t	GetTemperature () const

virtual Double_t	GetThickness () const

Double_t	GetZ () const

void	init ()

Bool_t	IsGas () const

Bool_t	IsIsotopic () const

Bool_t	IsNat () const

void	Print (Option_t *option="") const override
	Show information on this material. More...

virtual void	SetAbsGeoVolume (TGeoVolume *v)

void	SetAreaDensity (Double_t dens)

void	SetMass (Int_t a)

Public Member Functions inherited from KVBase
	KVBase ()
	Default constructor. More...

	KVBase (const Char_t name, const Char_t title="")
	Ctor for object with given name and type. More...

	KVBase (const KVBase &)
	copy ctor More...

void	Error (const char method, const char msgfmt,...) const override

const Char_t *	GetLabel () const

UInt_t	GetNumber () const

virtual TObject *	GetObject () const

virtual const Char_t *	GetType () const

Bool_t	HasLabel () const

virtual Bool_t	IsCalled (const Char_t *name) const

Bool_t	IsLabelled (const Char_t *l) const

virtual Bool_t	IsType (const Char_t *typ) const

virtual void	List ()

KVBase &	operator= (const KVBase &)
	copy assignment operator More...

void	SetLabel (const Char_t *lab)

virtual void	SetNumber (UInt_t num)

virtual void	SetType (const Char_t *str)

void	Warning (const char method, const char msgfmt,...) const override

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()

TObject *	Clone (const char *newname="") const override

Int_t	Compare (const TObject *obj) const override

virtual void	FillBuffer (char *&buffer)

const char *	GetName () const override

const char *	GetTitle () const override

ULong_t	Hash () const override

TClass *	IsA () const override

Bool_t	IsSortable () const override

void	ls (Option_t *option="") const override

TNamed &	operator= (const TNamed &rhs)

virtual void	SetNameTitle (const char name, const char title)

virtual void	SetTitle (const char *title="")

virtual Int_t	Sizeof () const

void	Streamer (TBuffer &) override

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)

virtual	~TObject ()

void	AbstractMethod (const char *method) const

virtual void	AppendPad (Option_t *option="")

virtual void	Browse (TBrowser *b)

ULong_t	CheckedHash ()

virtual const char *	ClassName () const

virtual void	Delete (Option_t *option="")

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)

virtual void	Draw (Option_t *option="")

virtual void	DrawClass () const

virtual TObject *	DrawClone (Option_t *option="") const

virtual void	Dump () const

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)

virtual void	Fatal (const char method, const char msgfmt,...) const

virtual TObject *	FindObject (const char *name) const

virtual TObject *	FindObject (const TObject *obj) const

virtual Option_t *	GetDrawOption () const

virtual const char *	GetIconName () const

virtual char *	GetObjectInfo (Int_t px, Int_t py) const

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const

virtual Bool_t	HandleTimer (TTimer *timer)

Bool_t	HasInconsistentHash () const

virtual void	Info (const char method, const char msgfmt,...) const

virtual Bool_t	InheritsFrom (const char *classname) const

virtual Bool_t	InheritsFrom (const TClass *cl) const

virtual void	Inspect () const

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const

virtual Bool_t	IsEqual (const TObject *obj) const

virtual Bool_t	IsFolder () const

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const

virtual Bool_t	Notify ()

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const

void	operator delete (void *ptr)

void	operator delete (void ptr, void vp)

void	operator delete[] (void *ptr)

void	operator delete[] (void ptr, void vp)

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)

virtual void	Paint (Option_t *option="")

virtual void	Pop ()

virtual Int_t	Read (const char *name)

virtual void	RecursiveRemove (TObject *obj)

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)

virtual void	SetDrawOption (Option_t *option="")

virtual void	SetUniqueID (UInt_t uid)

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const

Public Member Functions inherited from KVPosition
	KVPosition ()

	KVPosition (Double_t thmin, Double_t thmax, Double_t phmin, Double_t phmax, Double_t dist=0.0)

virtual	~KVPosition ()

void	CalculateEstimatedAngularLimits (int N=10000)

Double_t	GetAzimuthalWidth (Double_t phmin=-1., Double_t phimax=-1.) const

void	GetCornerCoordinates (TVector3 *, Double_t=0)

void	GetCornerCoordinatesInOwnFrame (TVector3 *, Double_t=0)

Double_t	GetPhiMax () const

Double_t	GetPhiMin () const

TRotation	GetRandomIsotropicRotation ()

Double_t	GetThetaMax () const

Double_t	GetThetaMin () const

void	GetWidthsFromDimension (Double_t lin_dim)

void	init ()
	default initialiser More...

Bool_t	IsAlignedWith (KVPosition *pos)
	kTRUE if one of the two solid angle elements is completely contained within the other. More...

Bool_t	IsAzimuthallyWiderThan (KVPosition *pos)

Bool_t	IsInPhiRange (const Double_t phi)

Bool_t	IsInPolarRange (const Double_t theta)
	kTRUE if given angle theta is within the polar range of this solid angle element More...

Bool_t	IsOverlappingWith (KVPosition *pos)
	kTRUE if there is at least partial overlap between two solid angle elements More...

Bool_t	IsSmallerThan (KVPosition *pos)
	kTRUE if "this" is entirely contained within "pos" More...

virtual Bool_t	ROOTGeo () const

virtual void	SetAzimuthalAngle (Double_t ph)

virtual void	SetAzimuthalMinMax (Double_t min, Double_t max)
	Set min and max azimuthal angles and calculate (mean) phi. More...

virtual void	SetAzimuthalWidth (Double_t aw)

void	SetDistance (Double_t d)

void	SetPhi (Double_t p)

void	SetPhiMinMax (Double_t min, Double_t max)

virtual void	SetPolarAngle (Double_t th)

virtual void	SetPolarMinMax (Double_t min, Double_t max)
	Set min and max polar angles and calculate (mean) theta. More...

virtual void	SetPolarWidth (Double_t pw)

void	SetTheta (Double_t t)

Static Public Member Functions
static const Char_t *	GetNewName (KVString oldname)

Static Public Member Functions inherited from KVDetector
static KVDetector *	MakeDetector (const Char_t *name, Float_t thick)

Static Public Member Functions inherited from KVMaterial
static KVIonRangeTable *	ChangeRangeTable (const Char_t *name)

static KVIonRangeTable *	GetRangeTable ()

Static Public Member Functions inherited from KVBase
static Bool_t	AreEqual (Double_t x, Double_t y, Long64_t maxdif=1)
	Comparison between two 64-bit floating-point values. More...

static void	BackupFileWithDate (const Char_t *path)

static void	CombineFiles (const Char_t file1, const Char_t file2, const Char_t *newfilename, Bool_t keep=kTRUE)

static void	Deprecated (const char method, const char advice)

static Bool_t	FindClassSourceFiles (const KVString &class_name, KVString &imp_file, KVString &dec_file, const KVString &dir_name=".")

static Bool_t	FindExecutable (TString &exec, const Char_t *path="$(PATH)")

static const Char_t *	FindFile (const Char_t *search, TString &wfil)

static const Char_t *	GetBINDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetDATABASEFilePath ()

static const Char_t *	GetDATADIRFilePath (const Char_t *namefile="")

template<typename ValType >
static ValType	GetDataSetEnv (const KVString &dataset, const KVString &type, const ValType &defval={})

static const Char_t *	GetETCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetExampleFilePath (const Char_t library, const Char_t namefile)
	Return full path to example file for given library (="KVMultiDet", "BackTrack", etc.) More...

static const Char_t *	GetINCDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetKVBuildDate ()
	Returns KaliVeda build date. More...

static const Char_t *	GetKVBuildDir ()
	Returns top-level directory used for build. More...

static const Char_t *	GetKVBuildTime ()
	Returns KaliVeda build time. More...

static const Char_t *	GetKVBuildType ()
	Returns KaliVeda build type (cmake build: Release, Debug, RelWithDebInfo, ...) More...

static const Char_t *	GetKVBuildUser ()
	Returns username of person who performed build. More...

static int	GetKVMajorVersion ()

static int	GetKVMinorVersion ()

static int	GetKVPatchVersion ()

static const Char_t *	GetKVSourceDir ()
	Returns top-level directory of source tree used for build. More...

static const Char_t *	GetKVVersion ()
	Returns KaliVeda version string. More...

static const Char_t *	GetLIBDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetListOfPlugins (const Char_t *base)

static const Char_t *	GetListOfPluginURIs (const Char_t *base)

static const Char_t *	GetPluginURI (const Char_t base, const Char_t plugin)

static void	GetTempFileName (TString &base)

static const Char_t *	GetTEMPLATEDIRFilePath (const Char_t *namefile="")

static const Char_t *	GetWORKDIRFilePath (const Char_t *namefile="")

static const Char_t *	gitBranch ()
	Returns git branch of sources. More...

static const Char_t *	gitCommit ()
	Returns last git commit of sources. More...

static void	InitEnvironment ()

static bool	is_gnuinstall ()

static Bool_t	IsEnvInit ()

static Bool_t	IsThisAPlugin (const TString &uri, TString &base)

static TPluginHandler *	LoadPlugin (const Char_t base, const Char_t uri="0")

static Bool_t	OpenContextMenu (const char method, TObject obj, const char *alt_method_name="")

static void	OpenTempFile (TString &base, std::ofstream &fp)

static void	PrintSplashScreen ()
	Prints welcome message and infos on version etc. More...

static Double_t	ProtectedGetX (const TF1 &func, Double_t val, GetX_status &status, std::optional< Double_t > xmin={}, std::optional< Double_t > xmax={})

static Double_t	ProtectedGetX (const TF1 *func, Double_t val, GetX_status &status, std::optional< Double_t > xmin={}, std::optional< Double_t > xmax={})

static Bool_t	SearchAndOpenKVFile (const Char_t name, KVSQLite::database &dbfile, const Char_t kvsubdir="")

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ifstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchAndOpenKVFile (const Char_t name, std::ofstream &file, const Char_t kvsubdir="", KVLockfile *locks=0)

static Bool_t	SearchKVFile (const Char_t name, TString &fullpath, const Char_t kvsubdir="")

static const Char_t *	WorkingDirectory ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()

static Bool_t	GetObjectStat ()

static void	SetDtorOnly (void *obj)

static void	SetObjectStat (Bool_t stat)

Private Member Functions
void	init ()
	default initialisations More...

KVDetectorSignal *	set_psa_detector_signal_value (const TString &sig_type, const TString &psa_val, double val)

KVDetectorSignal *	SetBaseLine (int sigid, Float_t baseline)

KVDetectorSignal *	SetFPGAEnergy (int sigid, Int_t idx, Double_t energy)

Bool_t	SetProperties ()

void	SetPSAResults (const KVSignal *sig)

Bool_t	use_signal_for_raw_data_tree (const TString &) const override
	Restrict list of signals which are used to fill raw data TTrees. More...

Private Attributes
Int_t	fBlock

Int_t	fIdentifier
	SI1=0(kSI1) SI2=1(kSI2) CSI=2(kCSI) More...

Int_t	fIndex
	100block+10quartet+telescope More...

Bool_t	fIsFiredFromSignals

Bool_t	fIsRutherford

Double_t	fQ2Threshold

Double_t	fQ3Threshold

Double_t	fQH1Threshold
	thresholds defined for this detector More...

Int_t	fQuartet

KVUniqueNameList	fSignals
	list of electronics signal (current, charge, etc... ) More...

Int_t	fTelescope

Friends
class	KVFAZIA

Additional Inherited Members
Public Attributes inherited from TObject
	kBitMask

	kCanDelete

	kCannotPick

	kHasUUID

	kInconsistent

	kInvalidObject

	kIsOnHeap

	kIsReferenced

	kMustCleanup

	kNoContextMenu

	kNotDeleted

	kObjInCanvas

	kOverwrite

	kSingleKey

	kWriteDelete

	kZombie

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const

void	MakeZombie ()

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Protected Attributes inherited from TObject
	kOnlyPrepStep

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
kSI1
kSI2
kCSI
kOTHER

Definition at line 128 of file KVFAZIADetector.h.

Constructor & Destructor Documentation

◆ KVFAZIADetector() [1/2]

KVFAZIADetector::KVFAZIADetector ( )

Default constructor.

Definition at line 50 of file KVFAZIADetector.cpp.

◆ KVFAZIADetector() [2/2]

KVFAZIADetector::KVFAZIADetector	(	const Char_t *	type,
		const Float_t	thick = `0.0`
	)

Create detector of given material type and thickness (in centimetres)

Definition at line 61 of file KVFAZIADetector.cpp.

◆ ~KVFAZIADetector()

KVFAZIADetector::~KVFAZIADetector ( )

virtual

Destructor.

Definition at line 72 of file KVFAZIADetector.cpp.

Member Function Documentation

◆ Clear()

void KVFAZIADetector::Clear ( Option_t * opt = "" )

overridevirtual

If opt="N" we do not reset any raw data, signals, etc.

Reimplemented from KVDetector.

Definition at line 105 of file KVFAZIADetector.cpp.

◆ ComputePSA()

void KVFAZIADetector::ComputePSA ( )

Perform Pulse Shape Analysis on all signals.

Definition at line 513 of file KVFAZIADetector.cpp.

◆ Copy()

void KVFAZIADetector::Copy ( TObject & obj ) const

overridevirtual

This method copies the current state of 'this' object into 'obj' You should add here any member variables, for example: (supposing a member variable KVFAZIADetector::fToto) CastedObj.fToto = fToto; or CastedObj.SetToto( GetToto() );

Reimplemented from KVDetector.

Definition at line 87 of file KVFAZIADetector.cpp.

◆ Fired()

Bool_t KVFAZIADetector::Fired ( Option_t * opt = "any" ) const

overridevirtual

Returns kTRUE if detector was hit (fired) in an event

Several methods are implemented.

If the detector has a "Fired" signal (defined by a calibration file containing threshold values for individual detectors), we simply test it (if "Fired" > 0, then we are above threshold).

If the detector is fired based on FPGA energy values (i.e. the [dataset].*.IsFiredFromSignal value is set to 0 for the dataset), thresholds are given for all SI1/SI2/CSI detectors using "[dataset].*.MinimumAmplitude" values for the QH1/QL1, Q2 and/or Q3 FPGA values, these will be used to test the corresponding "*.FPGAEnergy" signal of the detector.

Otherwise, the test is made on charge signals of the detectors:

if one of them return kTRUE to KVSignal::IsFired() method KVDetector::Fired() return kTRUE
if not return kFALSE and the detector will not be considered in following analysis except if a detector behind it has been fired

If the detector is in "simulation mode", i.e. if SetSimMode(kTRUE) has been called, this method returns kTRUE if the calculated energy loss in the active layer is > 0.

Reimplemented from KVDetector.

Definition at line 331 of file KVFAZIADetector.cpp.

◆ GetBlockNumber()

Int_t KVFAZIADetector::GetBlockNumber ( ) const

inline

Definition at line 164 of file KVFAZIADetector.h.

◆ GetDetTag()

Int_t KVFAZIADetector::GetDetTag ( ) const

inline

Definition at line 192 of file KVFAZIADetector.h.

◆ GetGTTag()

Int_t KVFAZIADetector::GetGTTag ( ) const

inline

Definition at line 196 of file KVFAZIADetector.h.

◆ GetIdentifier()

Int_t KVFAZIADetector::GetIdentifier ( ) const

inline

Return the identifier of the detector. This is one of KVFAZIADetector::kSI1 KVFAZIADetector::kSI2 KVFAZIADetector::kCSI KVFAZIADetector::kOTHER

Definition at line 154 of file KVFAZIADetector.h.

◆ GetIndex()

Int_t KVFAZIADetector::GetIndex ( ) const

inlineoverridevirtual

Return index of detector, defined as 100*block+10*quartet+telescope

Reimplemented from KVDetector.

Definition at line 168 of file KVFAZIADetector.h.

◆ GetListOfSignals()

const KVSeqCollection * KVFAZIADetector::GetListOfSignals ( ) const

Definition at line 503 of file KVFAZIADetector.cpp.

◆ GetNewName()

const Char_t * KVFAZIADetector::GetNewName ( KVString oldname )

static

Translate an old-style FAZIA detector name (e.g. "SI1-T1-Q2-B001") to the new format ("SI1-121")

Definition at line 274 of file KVFAZIADetector.cpp.

◆ GetNumberOfSignals()

Int_t KVFAZIADetector::GetNumberOfSignals ( ) const

Definition at line 494 of file KVFAZIADetector.cpp.

◆ GetQuartetNumber()

Int_t KVFAZIADetector::GetQuartetNumber ( ) const

inline

Definition at line 181 of file KVFAZIADetector.h.

◆ GetSetupParameter()

Double_t KVFAZIADetector::GetSetupParameter ( const Char_t * parname )

Definition at line 35 of file KVFAZIADetector.cpp.

◆ GetSignal() [1/2]

KVSignal * KVFAZIADetector::GetSignal ( const Char_t * name ) const

Access detector signal by name, i.e. as in FAZIA raw data e.g. "QL1-231"

Definition at line 451 of file KVFAZIADetector.cpp.

◆ GetSignal() [2/2]

KVSignal * KVFAZIADetector::GetSignal ( Int_t idx ) const

Access signal with given index in list of detector's signals 0 <= idx < KVFAZIADetector::GetNumberOfSignals()

Definition at line 481 of file KVFAZIADetector.cpp.

◆ GetSignalByType()

KVSignal * KVFAZIADetector::GetSignalByType ( const Char_t * type ) const

Access detector signal of given type: "I1", "I2", "Q2", "Q3", "QH1", "QL1"

Note: KVSignal does not inherit from KVBase, so FindObjectByType does not work (even though KVSignal::GetType() method exists)

Definition at line 466 of file KVFAZIADetector.cpp.

◆ GetTelescopeNumber()

Int_t KVFAZIADetector::GetTelescopeNumber ( ) const

inline

Definition at line 185 of file KVFAZIADetector.h.

◆ HasSignal()

Bool_t KVFAZIADetector::HasSignal ( ) const

Returns kTRUE if detector has at least 1 associated signal.

Definition at line 439 of file KVFAZIADetector.cpp.

◆ init()

void KVFAZIADetector::init ( void )

private

default initialisations

Definition at line 17 of file KVFAZIADetector.cpp.

◆ IsRutherford()

Bool_t KVFAZIADetector::IsRutherford ( ) const

inline

Returns kTRUE if detector is part of elastic scattering monitor telescope

Definition at line 175 of file KVFAZIADetector.h.

◆ set_psa_detector_signal_value()

KVDetectorSignal* KVFAZIADetector::set_psa_detector_signal_value	(	const TString &	sig_type,
		const TString &	psa_val,
		double	val
	)

inlineprivate

Definition at line 54 of file KVFAZIADetector.h.

◆ SetBaseLine()

KVDetectorSignal* KVFAZIADetector::SetBaseLine	(	int	sigid,
		Float_t	baseline
	)

inlineprivate

Set signal baseline computed inside the FPGA. Returns address of the signal which was set.

Definition at line 91 of file KVFAZIADetector.h.

◆ SetDetTag()

void KVFAZIADetector::SetDetTag ( Int_t t )

inline

Definition at line 200 of file KVFAZIADetector.h.

◆ SetFPGAEnergy()

KVDetectorSignal* KVFAZIADetector::SetFPGAEnergy	(	int	sigid,
		Int_t	idx,
		Double_t	energy
	)

inlineprivate

Set FPGA energy value in appropriate KVDetectorSignal of detector and set its state to 'fired'. Returns address of the signal which was set.

Definition at line 66 of file KVFAZIADetector.h.

◆ SetGTTag()

void KVFAZIADetector::SetGTTag ( Int_t t )

inline

Definition at line 204 of file KVFAZIADetector.h.

◆ SetName()

void KVFAZIADetector::SetName ( const char * name )

overridevirtual

Reimplemented from TNamed.

Definition at line 117 of file KVFAZIADetector.cpp.

◆ SetProperties()

Bool_t KVFAZIADetector::SetProperties ( )

private

detector name are assumed to be defined as label-xxx where xxx is computed as follow : 100*block number+10*quartet number+telescope number and label can be SI1, SI2 or CSI For example SI1-123 is the Silicon Si1 of the block 1, the quartet 2 and the telescope 3

Definition at line 135 of file KVFAZIADetector.cpp.

◆ SetPSAResults()

void KVFAZIADetector::SetPSAResults ( const KVSignal * sig )

inlineprivate

Set PSA results in appropriate KVDetectorSignals of detector and set their state to 'fired'

Definition at line 115 of file KVFAZIADetector.h.

◆ SetSignal()

void KVFAZIADetector::SetSignal	(	TGraph *	signal,
		const Char_t *	signal_name
	)

Copy waveform data from TGraph into the signal with the given name (QH1-345 etc.)

Then perform analysis of signal and set the values of the corresponding KVDetectorSignalValue objects

Definition at line 417 of file KVFAZIADetector.cpp.

◆ use_signal_for_raw_data_tree()

Bool_t KVFAZIADetector::use_signal_for_raw_data_tree ( const TString & type ) const

overrideprivatevirtual

Restrict list of signals which are used to fill raw data TTrees.

Reimplemented from KVDetector.

Definition at line 242 of file KVFAZIADetector.cpp.

Friends And Related Function Documentation

◆ KVFAZIA

friend class KVFAZIA

friend

Definition at line 31 of file KVFAZIADetector.h.

Member Data Documentation

◆ fBlock

Int_t KVFAZIADetector::fBlock

private

Definition at line 35 of file KVFAZIADetector.h.

◆ fIdentifier

Int_t KVFAZIADetector::fIdentifier

private

SI1=0(kSI1) SI2=1(kSI2) CSI=2(kCSI)

Definition at line 38 of file KVFAZIADetector.h.

◆ fIndex

Int_t KVFAZIADetector::fIndex

private

100*block+10*quartet+telescope

Definition at line 39 of file KVFAZIADetector.h.

◆ fIsFiredFromSignals

Bool_t KVFAZIADetector::fIsFiredFromSignals

private

Definition at line 47 of file KVFAZIADetector.h.

◆ fIsRutherford

Bool_t KVFAZIADetector::fIsRutherford

private

Definition at line 40 of file KVFAZIADetector.h.

◆ fQ2Threshold

Double_t KVFAZIADetector::fQ2Threshold

private

Definition at line 44 of file KVFAZIADetector.h.

◆ fQ3Threshold

Double_t KVFAZIADetector::fQ3Threshold

private

Definition at line 45 of file KVFAZIADetector.h.

◆ fQH1Threshold

Double_t KVFAZIADetector::fQH1Threshold

private

thresholds defined for this detector

Definition at line 43 of file KVFAZIADetector.h.

◆ fQuartet

Int_t KVFAZIADetector::fQuartet

private

Definition at line 36 of file KVFAZIADetector.h.

◆ fSignals

KVUniqueNameList KVFAZIADetector::fSignals

private

list of electronics signal (current, charge, etc... )

Definition at line 33 of file KVFAZIADetector.h.

◆ fTelescope

Int_t KVFAZIADetector::fTelescope

private

Definition at line 37 of file KVFAZIADetector.h.

Detailed Description

Detector names

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ KVFAZIADetector() [1/2]

◆ KVFAZIADetector() [2/2]

◆ ~KVFAZIADetector()

Member Function Documentation

◆ Clear()

◆ ComputePSA()

◆ Copy()

◆ Fired()

◆ GetBlockNumber()

◆ GetDetTag()

◆ GetGTTag()

◆ GetIdentifier()

◆ GetIndex()

◆ GetListOfSignals()

◆ GetNewName()

◆ GetNumberOfSignals()

◆ GetQuartetNumber()

◆ GetSetupParameter()

◆ GetSignal() [1/2]

◆ GetSignal() [2/2]

◆ GetSignalByType()

◆ GetTelescopeNumber()

◆ HasSignal()

◆ init()

◆ IsRutherford()

◆ set_psa_detector_signal_value()

◆ SetBaseLine()

◆ SetDetTag()

◆ SetFPGAEnergy()

◆ SetGTTag()

◆ SetName()

◆ SetProperties()

◆ SetPSAResults()

◆ SetSignal()

◆ use_signal_for_raw_data_tree()

Friends And Related Function Documentation

◆ KVFAZIA

Member Data Documentation

◆ fBlock

◆ fIdentifier

◆ fIndex

◆ fIsFiredFromSignals

◆ fIsRutherford

◆ fQ2Threshold

◆ fQ3Threshold

◆ fQH1Threshold

◆ fQuartet

◆ fSignals

◆ fTelescope
